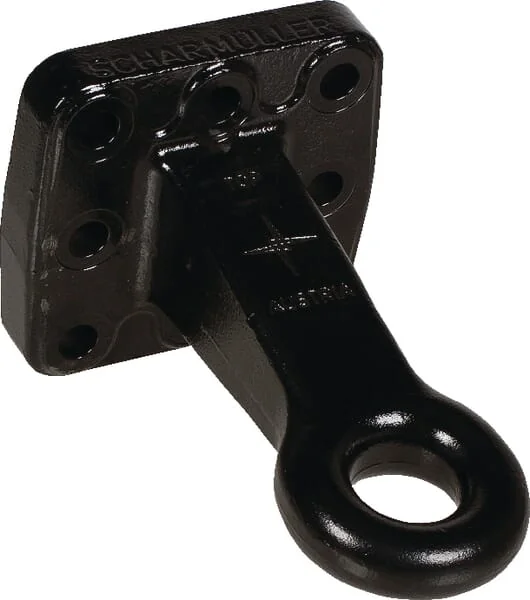

Scharmüller - 00653400A02 - Flange Tow Eye 50 mm
Scharmüller - 00653400A02 - Flange Tow Eye 50 mm
Scharmüller - 00653400A02 - Flange Tow Eye 50 mm
Scharmüller - 00653400A02 - Flange Tow Eye 50 mm

In stock - ready to ship

Order now for delivery between 14 May and 18 May
Free shipping

Pay Securely with

Scharmüller - 00653400A02 - Flange Tow Eye 50 mm

Scharmüller - 00653400A02 - Flange Tow Eye 50 mm

€406.61

(Excl. VAT)

Price

(Excl. VAT)

€406.61

Product Description

The Scharmüller 00653400A02 is a genuine 50 mm flange tow eye designed for agricultural trailers and machines. It features a robust 4-hole flange with a 110 x 100 mm hole pattern and 17 mm diameter holes, suitable for M16 screws. This tow eye has a D-value of 100 kN and an S-value of 1000 kg, ensuring reliable performance. It holds EC type approval 00-0016 e1.
Scharmüller
Scharmüller specializes in tractor attachments and implements for farming and forestry. The brand offers front loaders, bale handlers, and logging equipment designed for heavy-duty use. Its products are engineered for durability and seamless integration with tractor hydraulic systems. Shop more than 896 genuine Scharmueller spare parts.

Product Details

Brand
Scharmüller
Unit
Each
Colour
Black
DCvalue
90.9 kN
Properties
Ring towing eyes 50mm Similar to DIN 9678
Total length
240 mm
Working length
240 mm
Thread diameter
M20
Application range
Mainly for use on heavy agricultural and forestry trailers
Max. vertical load
3000 kg
Mounting holes number
8
Max. mounting holes distance
130 mm
Min. mounting holes distance
130 mm
Towing eye inside diameter (main hole)
50 mm
Manufacturer
Scharmüller
