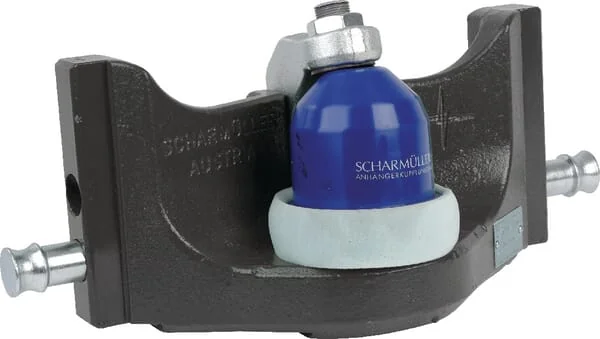

Scharmüller - 05633045A02 - Tow Ball Coupler 80 mm 329 mm
Scharmüller - 05633045A02 - Tow Ball Coupler 80 mm 329 mm
Scharmüller - 05633045A02 - Tow Ball Coupler 80 mm 329 mm
Scharmüller - 05633045A02 - Tow Ball Coupler 80 mm 329 mm
Scharmüller - 05633045A02 - Tow Ball Coupler 80 mm 329 mm
Scharmüller - 05633045A02 - Tow Ball Coupler 80 mm 329 mm

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

Scharmüller - 05633045A02 - Tow Ball Coupler 80 mm 329 mm

Scharmüller - 05633045A02 - Tow Ball Coupler 80 mm 329 mm

€863.00

(Excl. VAT)

Price

(Excl. VAT)

€863.00

Scharmueller
Scharmüller specializes in tractor attachments and implements for farming and forestry. The brand offers front loaders, bale handlers, and logging equipment designed for heavy-duty use. Its products are engineered for durability and seamless integration with tractor hydraulic systems. Shop more than 56 genuine Scharmueller spare parts.

Product Details

Brand
Scharmüller
Type
K80® Manual
Unit
Each
Colour
Black
Benefits
Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
Extra info
Pluggable with Bolt
Properties
Optional retrofit with forced steering (right, left, both sides)
Track width
329 mm
Working length
57 mm
Track thickness
32 mm
Application range
Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Adapter plate height
160 mm
Locking pin diameter
25 mm
Max. permissible D-Value
89,3 kN
Max. permissible vertical load
4000 kg
Manufacturer
Scharmüller
