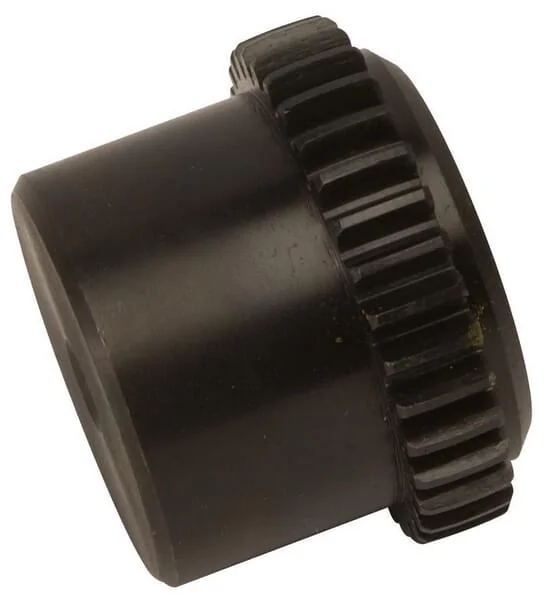

Sit - GDM19 - Hub Sitex Size 19 Solid

Sit - GDM19 - Hub Sitex Size 19 Solid

Sit - GDM19 - Hub Sitex Size 19 Solid

Sit - GDM19 - Hub Sitex Size 19 Solid

Number of products

In stock - ready to ship

Order now for delivery between 4 May and 7 May

Free shipping on orders over €60

Pay Securely with

Sit - GDM19 - Hub Sitex Size 19 Solid

Sit - GDM19 - Hub Sitex Size 19 Solid

€8.25

(Excl. VAT)

Price

(Excl. VAT)

€8.25

Number of products

Product Description

Optimum flexible coupling for compensating for radial alignment errors and angle deviation

Sit

Product Details

Brand

Info

Interchangeable with Bowex and Dentex

Type

19

Unit

Each

FWidth

37 mm

Torque

16 N·m

Material

Steel

Hub Width

25 mm

Properties

Highly insensitive to oil and chemicals Not rupture-proof

Consists of

1 coupling half Complete coupling consists of: 2 type GDM halves and 1 type AD sleeve

Torque max.

48 N·m

BDiameter hub

30 mm

LTotal length

54 mm

Technical info

Material: steel On request with bore and keyway

Number of tines

24

Revolutions max.

11800 r/min

AOutside diameter

48 mm

Application range

Shaft connection for a hydraulic pump or hydraulic motor, among others

Shaft misalignment axial max.

1 mm

Distance between coupling halfs

4 mm

Manufacturer

Sit
