Transmission, Drivetrain & Brakes

Drivetrain Parts

Other Drivetrain Parts

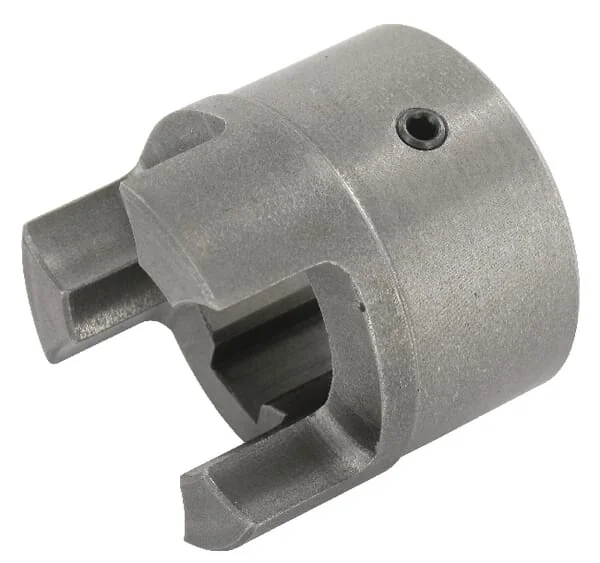

Sit - GRM1924F20 - Hub 19 B Diameter 20h7 Key 6

Sit - GRM1924F20 - Hub 19 B Diameter 20h7 Key 6

Sit - GRM1924F20 - Hub 19 B Diameter 20h7 Key 6

Sit - GRM1924F20 - Hub 19 B Diameter 20h7 Key 6

Sit - GRM1924F20 - Hub 19 B Diameter 20h7 Key 6

Number of products

In stock - ready to ship

Order now for delivery between 22 May and 26 May

Free shipping on orders over €60

Pay Securely with

Sit - GRM1924F20 - Hub 19 B Diameter 20h7 Key 6

Sit - GRM1924F20 - Hub 19 B Diameter 20h7 Key 6

€11.18

(Excl. VAT)

Price

(Excl. VAT)

€11.18

Number of products

Product Description

Rupture proof Balanced: G16 in accordance with DIN-ISO 194 Available in Atex directive 94/9/EC Complete coupling consists of: 2 halves type GRMB..B1/GRMB..B2 and 1 plastic star Interchangeable with: Rotex (KTR), Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) &Giflex (Chiaravalli)

Sit

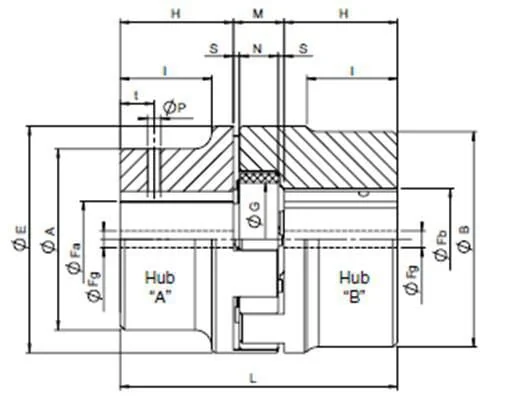

Product Details

Brand

Hole

20H7

Unit

Each

Includes

1 coupling half

Material

Steel

Type code

19/24

Properties

Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940

Consists of

1 coupling half

FgKey width

6 mm

HLength body

25 mm

ADiameter hub

40 mm

LTotal length

66 mm

Technical info

Hub bore, keyway and tapped hole are optional Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type GRMB..B1/GRMB..B2 and 1 plastic star Can be replaced with Rotex (KTR); Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) & Giflex (Chiaravalli)

Application range

Shaft connection for pumps and motors

EOutside diameter flange

40 mm

Max. shaft misalignment axial

1.2 mm

Max. shaft misalignment radial

0.2 mm

Nominal working torque by 92°

10 N·m

Nominal working torque by 98°

17 N·m

Max. shaft misalignment angular

1.5 °

Manufacturer

Sit
