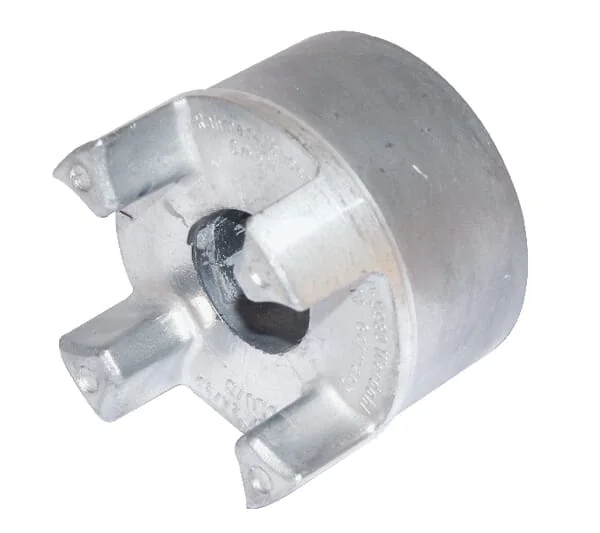

Sit - GRMALU2432B - Hub 24 B Solid Aluminum

Sit - GRMALU2432B - Hub 24 B Solid Aluminum

Sit - GRMALU2432B - Hub 24 B Solid Aluminum

Sit - GRMALU2432B - Hub 24 B Solid Aluminum

Sit - GRMALU2432B - Hub 24 B Solid Aluminum

Number of products

In stock - ready to ship

Order now for delivery between 19 May and 22 May

Free shipping on orders over €60

Pay Securely with

Sit - GRMALU2432B - Hub 24 B Solid Aluminum

Sit - GRMALU2432B - Hub 24 B Solid Aluminum

€6.70

(Excl. VAT)

Price

(Excl. VAT)

€6.70

Number of products

Product Description

Rupture proof Balanced: G16 in accordance with DIN-ISO 194 Available in Atex directive 94/9/EC Complete coupling consists of: 2 halves type GRMB..B1/GRMB..B2 and 1 plastic star Interchangeable with: Rotex (KTR), Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) &Giflex (Chiaravalli)

Sit

Product Details

Brand

Unit

Each

Includes

1 coupling half

Material

Aluminium

Type code

24/32

Properties

Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940

Consists of

1 coupling half

HLength body

30 mm

ADiameter hub

55 mm

LTotal length

78 mm

Technical info

Hub bore, keyway and tapped hole are optional Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type GRMB..B1/GRMB..B2 and 1 plastic star Can be replaced with Rotex (KTR); Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) & Giflex (Chiaravalli)

Application range

Shaft connection for pumps and motors

GBore diameter max.

32 mm

EOutside diameter flange

55 mm

Max. shaft misalignment axial

1.4 mm

Max. shaft misalignment radial

0.22 mm

Nominal working torque by 92°

35 N·m

Nominal working torque by 98°

60 N·m

Max. shaft misalignment angular

1.5 °

Manufacturer

Sit

Similar items you might like

Sit - GRMALU2838A - Hub 28 A Pilot Bore Aluminum
Sit
€7.91
Sit - GRMALU2838AF16 - Hub 28 A Diameter 16h7 Key 5 Aluminum
Sit
€16.22

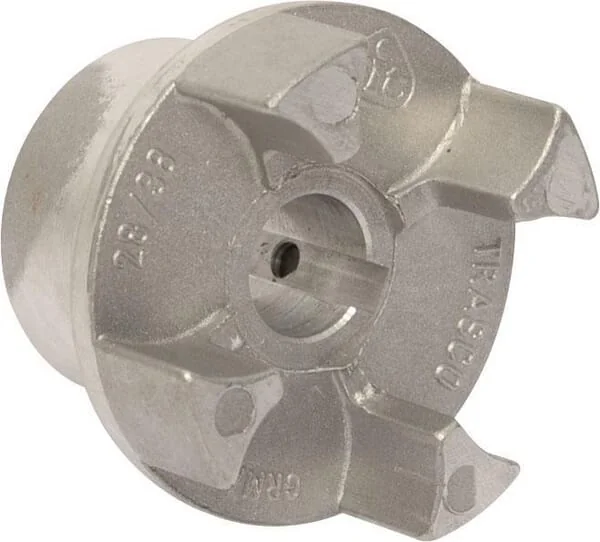

Sit - GRMALU2838AF24 - Hub Alu 28 A Diameter 24h7 Key 8
Sit
€16.22
Sit - GRMALU2838AF25 - Hub 28 A Diameter 25h7 Key 8 Aluminum
Sit
€16.22
Sit - GRMALU2838AF28 - Hub 28 A Diameter 28h7 Key 8 Aluminum
Sit
€16.78
Sit - GRMALU2838B - Hub 28 B Pilot Bore Aluminum
Sit
€9.26

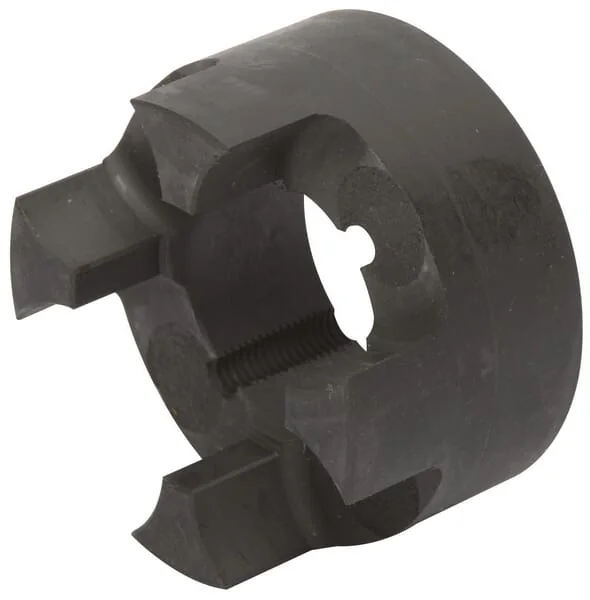

Sit - GRMB2838B1 - Hub Gg 28, Tl 1108 B1
