Sit - GRMB2838B2 - Hub Gg 28, Tl 1108 B2

Sit - GRMB2838B2 - Hub Gg 28, Tl 1108 B2

Sit - GRMB2838B2 - Hub Gg 28, Tl 1108 B2

Sit - GRMB2838B2 - Hub Gg 28, Tl 1108 B2

Sit - GRMB2838B2 - Hub Gg 28, Tl 1108 B2

Sit - GRMB2838B2 - Hub Gg 28, Tl 1108 B2

Number of products

In stock - ready to ship

Order now for delivery between 11 May and 14 May

Free shipping on orders over €60

Pay Securely with

Sit - GRMB2838B2 - Hub Gg 28, Tl 1108 B2

Sit - GRMB2838B2 - Hub Gg 28, Tl 1108 B2

€16.73

(Excl. VAT)

Price

(Excl. VAT)

€16.73

Number of products

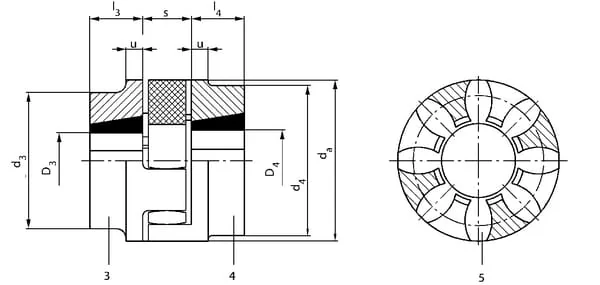

Product Details

Brand

Unit

Each

Material

Cast iron GG25

Type bush

1108

Type code

28/38

Properties

Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940

Consists of

1 coupling half

Total length

66 mm

l4Length body

23 mm

Technical info

Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type GRMB..B1/GRMB..B2, 2 taperlock adjustment bushes and 1 plastic star Can be replaced with Rotex (KTR); Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) & Giflex (Chiaravalli)

Application range

Shaft connection for pumps and motors

sClearance distance

20 mm

Hub outside diameter

65 mm

Outside diameter flange

65 mm

Max. revolutions min-1 rpm.

11800

Max. shaft misalignment angle

1,5 °

Max. shaft misalignment axial

1.5 mm

Max. shaft misalignment radial

0.25 mm

Nominal working torque by 92°

95 N·m

Nominal working torque by 98°

160 N·m

d3Hub outside diameter - side 2

65 mm

Manufacturer

Sit
