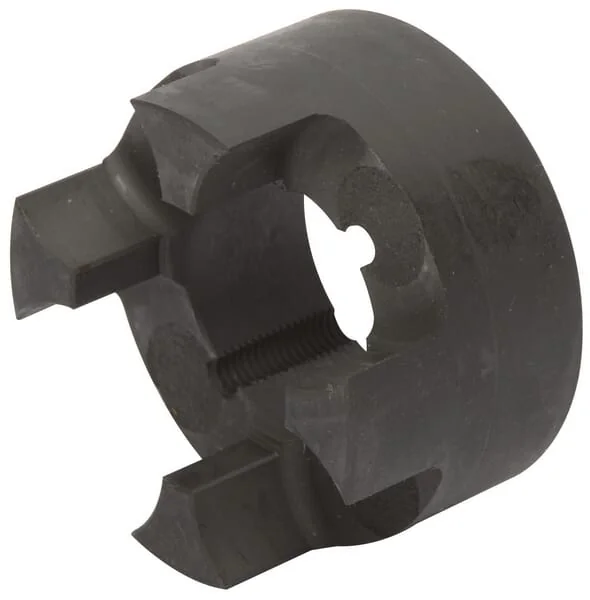

Sit - GRMB6575B2 - Hub Gg 65, Tl 2012 B2

Sit - GRMB6575B2 - Hub Gg 65, Tl 2012 B2

Sit - GRMB6575B2 - Hub Gg 65, Tl 2012 B2

Sit - GRMB6575B2 - Hub Gg 65, Tl 2012 B2

Sit - GRMB6575B2 - Hub Gg 65, Tl 2012 B2

Sit - GRMB6575B2 - Hub Gg 65, Tl 2012 B2

Number of products

In stock - ready to ship

Order now for delivery between 16 May and 20 May

Free shipping on orders over €60

Pay Securely with

Sit - GRMB6575B2 - Hub Gg 65, Tl 2012 B2

Sit - GRMB6575B2 - Hub Gg 65, Tl 2012 B2

€37.78

(Excl. VAT)

Price

(Excl. VAT)

€37.78

Number of products

Product Details

Brand

Unit

Each

Material

Cast iron GG25

Hub width

19 mm

Type bush

2012

Type code

65/75

Properties

Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940

Consists of

1 coupling half

Total length

101 mm

l4Length body

33 mm

Technical info

Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type GRMB..B1/GRMB..B2, 2 taperlock adjustment bushes and 1 plastic star Can be replaced with Rotex (KTR); Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) & Giflex (Chiaravalli)

Application range

Shaft connection for pumps and motors

Max rotation speed

5600 r/min

sClearance distance

35 mm

Hub outside diameter

135 mm

Outside diameter flange

135 mm

Max. shaft misalignment angle

1,5 °

Max. shaft misalignment axial

2.6 mm

Max. shaft misalignment radial

0.42 mm

Nominal working torque by 92°

625 N·m

Nominal working torque by 98°

950 N·m

d3Hub outside diameter - side 2

133 mm

Manufacturer

Sit
