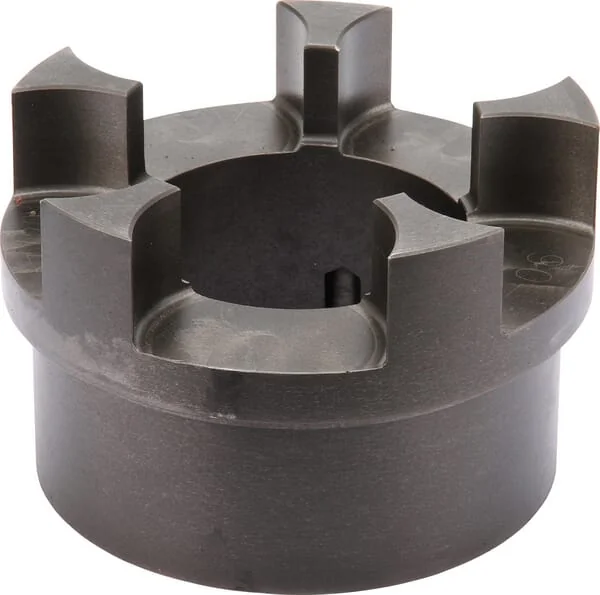

Sit - GRMB90100B1 - Hub Gg 90, Tl 3535 B1
Sit - GRMB90100B1 - Hub Gg 90, Tl 3535 B1
Sit - GRMB90100B1 - Hub Gg 90, Tl 3535 B1
Sit - GRMB90100B1 - Hub Gg 90, Tl 3535 B1
Sit - GRMB90100B1 - Hub Gg 90, Tl 3535 B1
Sit - GRMB90100B1 - Hub Gg 90, Tl 3535 B1

In stock - ready to ship

Order now for delivery between 20 May and 23 May
Free shipping

Pay Securely with

Sit - GRMB90100B1 - Hub Gg 90, Tl 3535 B1

Sit - GRMB90100B1 - Hub Gg 90, Tl 3535 B1

€161.47

(Excl. VAT)

Price

(Excl. VAT)

€161.47

Product Details

Brand
Sit
Unit
Each
Material
Cast iron GG25
Hub width
70 mm
Type bush
3535
Type code
90/100
Properties
Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940
Consists of
1 coupling half
Total length
223 mm
l4Length body
89 mm
Technical info

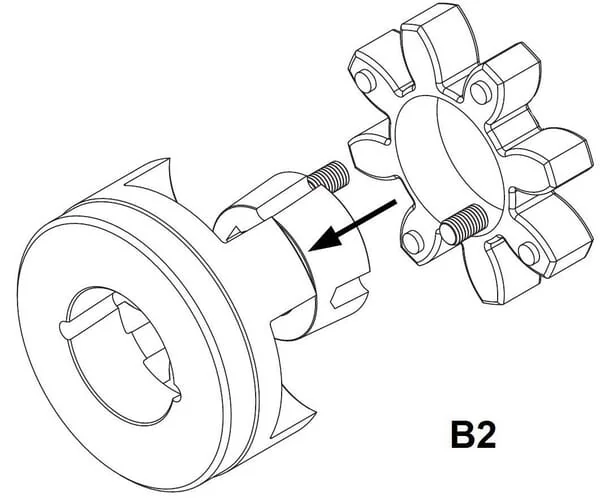

Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type GRMB..B1/GRMB..B2, 2 taperlock adjustment bushes and 1 plastic star Can be replaced with Rotex (KTR); Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) & Giflex (Chiaravalli)
Application range
Shaft connection for pumps and motors
Max rotation speed
2000 r/min
sClearance distance
45 mm
Hub outside diameter
200 mm
Outside diameter flange
200 mm
Max. shaft misalignment angle
1,5 °
Max. shaft misalignment axial
4.6 mm
Max. shaft misalignment radial
0.6 mm
Nominal working torque by 92°
6650 N·m
Nominal working torque by 98°
10000 N·m
d3Hub outside diameter - side 2
180 mm
Manufacturer
Sit
