Sit - GRMB4860B2 - Hub Gg 48, Tl 1615 B2

Sit - GRMB4860B2 - Hub Gg 48, Tl 1615 B2

Sit - GRMB4860B2 - Hub Gg 48, Tl 1615 B2

Sit - GRMB4860B2 - Hub Gg 48, Tl 1615 B2

Sit - GRMB4860B2 - Hub Gg 48, Tl 1615 B2

Sit - GRMB4860B2 - Hub Gg 48, Tl 1615 B2

Number of products

In stock - ready to ship

Order now for delivery between 25 May and 28 May

Free shipping on orders over €60

Pay Securely with

Sit - GRMB4860B2 - Hub Gg 48, Tl 1615 B2

Sit - GRMB4860B2 - Hub Gg 48, Tl 1615 B2

€27.05

(Excl. VAT)

Price

(Excl. VAT)

€27.05

Number of products

Product Details

Brand

Unit

Each

Material

Cast iron GG25

Hub width

28 mm

Type bush

1615

Type code

48/60

Properties

Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940

Consists of

1 coupling half

Total length

106 mm

l4Length body

39 mm

Technical info

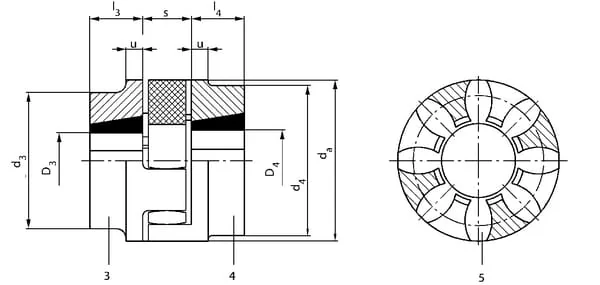

Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type GRMB..B1/GRMB..B2, 2 taperlock adjustment bushes and 1 plastic star Can be replaced with Rotex (KTR); Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) & Giflex (Chiaravalli)

Application range

Shaft connection for pumps and motors

Max rotation speed

7100 r/min

sClearance distance

28 mm

Hub outside diameter

105 mm

Outside diameter flange

105 mm

Max. shaft misalignment angle

1,5 °

Max. shaft misalignment axial

2.1 mm

Max. shaft misalignment radial

0.36 mm

Nominal working torque by 92°

310 N·m

Nominal working torque by 98°

525 N·m

d3Hub outside diameter - side 2

104 mm

Manufacturer

Sit
