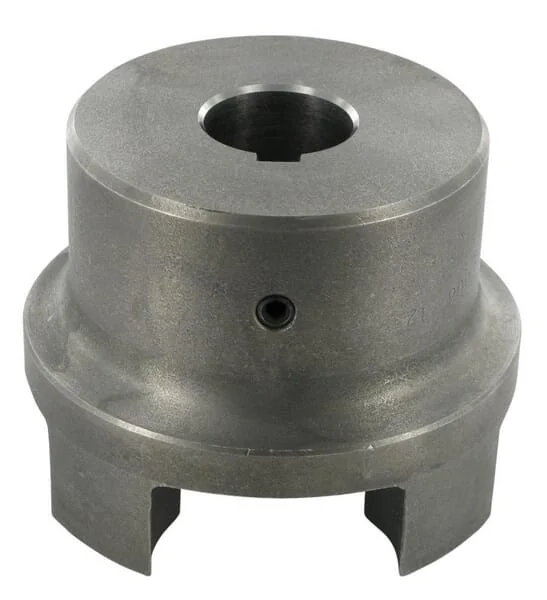

Sit - GRMP3845AF32 - Hub Gg 38 A Diameter 32h7 Key 10
Sit - GRMP3845AF32 - Hub Gg 38 A Diameter 32h7 Key 10
Sit - GRMP3845AF32 - Hub Gg 38 A Diameter 32h7 Key 10
Sit - GRMP3845AF32 - Hub Gg 38 A Diameter 32h7 Key 10
Sit - GRMP3845AF32 - Hub Gg 38 A Diameter 32h7 Key 10
Sit - GRMP3845AF32 - Hub Gg 38 A Diameter 32h7 Key 10

In stock - ready to ship

Order now for delivery between 14 May and 18 May
Free shipping on orders over €60

Pay Securely with

Sit - GRMP3845AF32 - Hub Gg 38 A Diameter 32h7 Key 10

Sit - GRMP3845AF32 - Hub Gg 38 A Diameter 32h7 Key 10

€26.84

(Excl. VAT)

Price

(Excl. VAT)

€26.84

Product Description

Rupture proof Balanced: G16 in accordance with DIN-ISO 194 Available in Atex directive 94/9/EC Complete coupling consists of: 2 halves type GRMB..B1/GRMB..B2 and 1 plastic star Interchangeable with: Rotex (KTR), Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) &Giflex (Chiaravalli)
Sit

Product Details

Brand
Sit
Hole
32H7
Unit
Each
Includes
1 coupling half
Material
Cast iron GG25
Type code
38/45
IHub width
37 mm
Properties
Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940
Consists of
1 coupling half
FgKey width
10 mm
HLength body
45 mm
ADiameter hub
66 mm
LTotal length
114 mm
Technical info
Hub bore, keyway and tapped hole are optional Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type GRMB..B1/GRMB..B2 and 1 plastic star Can be replaced with Rotex (KTR); Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) & Giflex (Chiaravalli)
Application range
Shaft connection for pumps and motors
Max rotation speed
9500 r/min
MClearance distance
24 mm
EOutside diameter flange
80 mm
Max. shaft misalignment axial
1.8 mm
Max. shaft misalignment radial
0.28 mm
Nominal working torque by 92°
190 N·m
Nominal working torque by 98°
325 N·m
Max. shaft misalignment angular
1.5 °
Manufacturer
Sit
