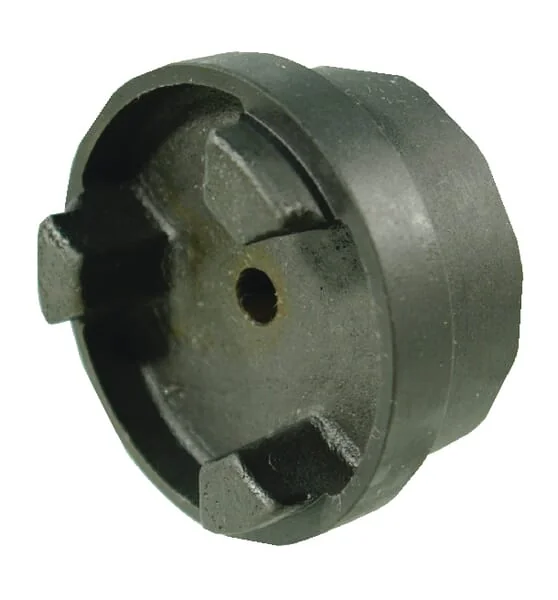

Sit - HRCP130B - Hub Gg, Pilot Bore

Sit - HRCP130B - Hub Gg, Pilot Bore

Sit - HRCP130B - Hub Gg, Pilot Bore

Sit - HRCP130B - Hub Gg, Pilot Bore

Sit - HRCP130B - Hub Gg, Pilot Bore

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

Sit - HRCP130B - Hub Gg, Pilot Bore

Sit - HRCP130B - Hub Gg, Pilot Bore

€38.09

(Excl. VAT)

Price

(Excl. VAT)

€38.09

Number of products

Product Details

Brand

Type

130

Unit

Each

Weight

4.45 kg

Benefits

High level of operational reliability

Material

GG25

Properties

Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940

Consists of

1 coupling half

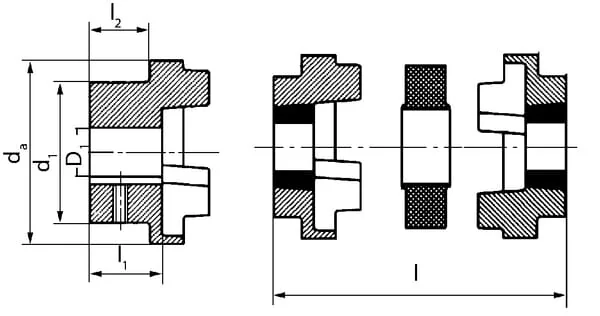

Length body

47.5 mm

Total length

130 mm

l2Length hub

39 mm

Bore diameter

20 mm

Nominal torque

315 kpm

Technical info

Hub bore, keyway and tapped hole are optional Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type HRC and 1 plastic star Can be replaced with Fenner HRC

d1Diameter hub

105 mm

Application range

Shaft connection for pumps and motors

Bore diameter max.

60 mm

daOutside diameter flange

130 mm

Max. revolutions min-1 rpm.

4100

Max. shaft misalignment axial

0.8 mm

Max. shaft misalignment radial

0.4 mm

Max. shaft misalignment angular

1 °

Manufacturer

Sit
