SKF - FYTWK35YTA - Y-Bearings FYTWK 35 YTA
SKF - FYTWK35YTA - Y-Bearings FYTWK 35 YTA

Last known price:

€67.84

Get an up-to-date price and availability

Request a Quote

Pay Securely with

SKF - FYTWK35YTA - Y-Bearings FYTWK 35 YTA

SKF - FYTWK35YTA - Y-Bearings FYTWK 35 YTA

Last known price:

€67.84

Request a Quote

Product Description

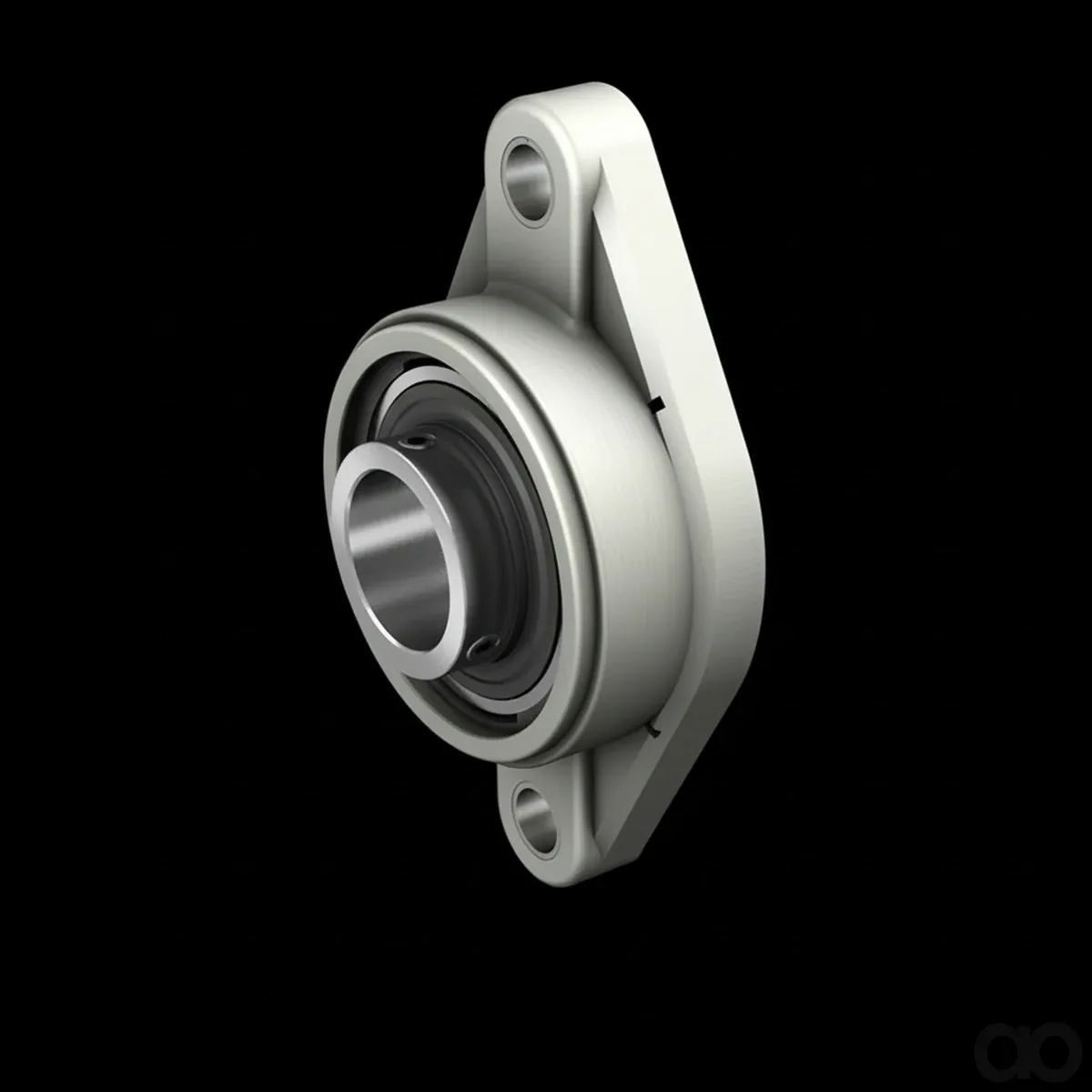

The SKF FYTWK35YTA is a high-quality Y-bearing unit featuring a 35 mm tapered bore and an eccentric locking collar for secure shaft attachment. This robust bearing unit includes a durable cast iron housing (FYT 507) and a YAR 207-2F/VE495 bearing, designed for reliable performance in various industrial applications. It offers a dynamic load rating of 25.5 kN and a static load rating of 15.3 kN, with a limiting speed of 4300 rpm. The unit is equipped with a standard seal and flinger, grease lubrication, and a relubrication feature for extended service life. Its dimensions include an 80 mm outer diameter and an overall width of 49.2 mm.
SKF
SKF is a global supplier of bearings, seals, and lubrication systems for agricultural machinery. The brand provides components for tractors, harvesters, and other farm equipment. Its products are engineered to reduce friction and extend service life in demanding agricultural applications. Shop more than 9,130 genuine Skf spare parts.

Product Details

Brand
skf
Bore Diameter (mm)
35
Outer Diameter (mm)
80
Width Inner Ring (mm)
49.2
Overall Length (mm)
100
Overall Height (mm)
49.2
Mounting Hole Distance (mm)
60
Mounting Hole Diameter (mm)
15
Weight (kg)
0.65
Dynamic Load Rating (kN)
25.5
Static Load Rating (kN)
15.3
Fatigue Load Limit (kN)
0.64
Limiting Speed (rpm)
4300
Housing Designation
FYT 507
Bearing Designation
YAR 207-2F/VE495
Housing Material
Cast iron
Sealing Solution
Standard seal with flinger
Lubricant
Grease
Relubrication Feature
True
Bore Type
Tapered
Locking Method
Eccentric locking collar
Radial Internal Clearance
Normal
Bearing Material
Bearing steel
Cage Material
Sheet metal
Number Of Rows
1
Raceway Type
Deep groove ball bearing
Relubrication Nipple
True
Mounting Type
With locating pin
Temperature Range (°C)
-20 to 120
Quality
OEM Supplier
Manufacturer
skf
