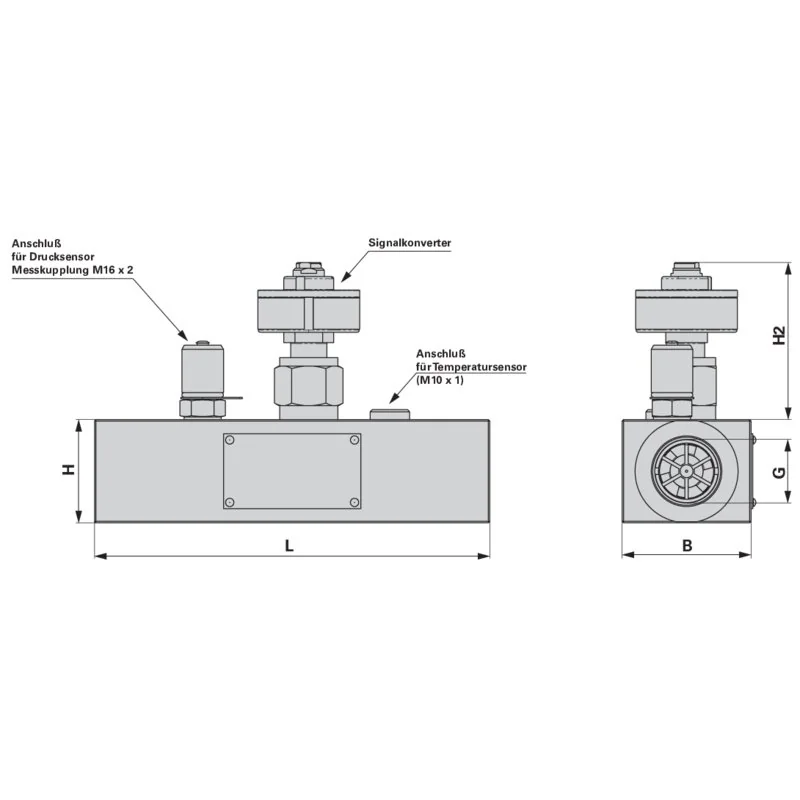

STAUFF - PPC-04/12-SFM-150 - Flow meter turbine

Features: suitable for liquids 5-pin connection, black anodized aluminum Connection internal thread G1/2" Sensor version: PPC-04/12 Flow measuring range: 5 to 150 l/min Temperature range: -20°C to +90°C Operating pressure: 350 bar Overload pressure: 420 bar Accuracy: 1% +/- full scale value Technical information: The flow turbine PPC-04/12-SFM is designed for fixed pipeline installation. The internal axial turbine is set in rotation by the oil flow. The generated frequencies are processed by digital electronics (signal converter). The influences of disturbing flow effects are compensated. The signal converter was integrated directly into the flow turbine.
