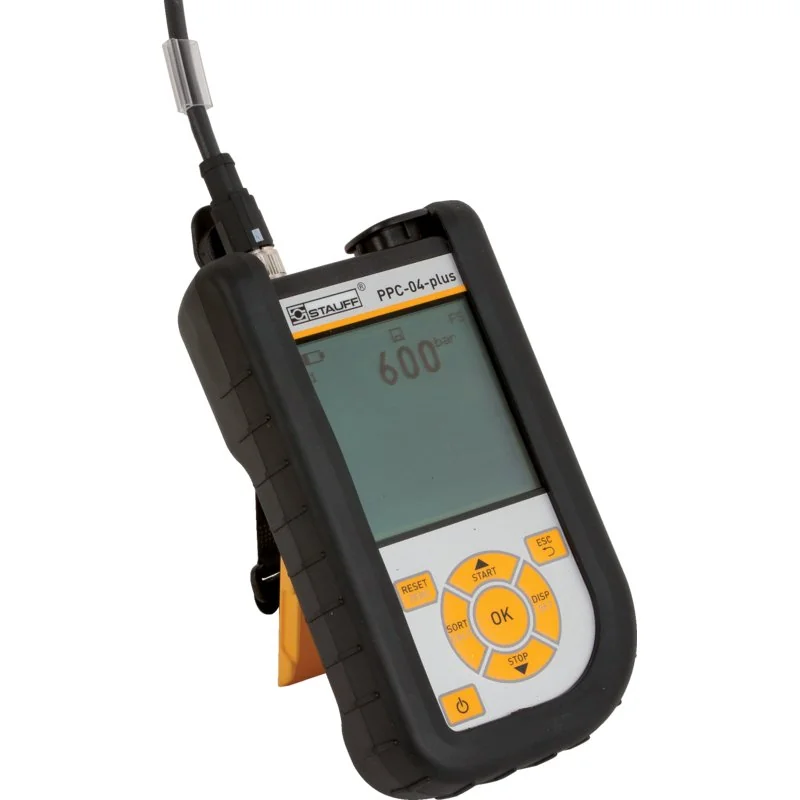

STAUFF - PPC-04-plus-CAN - Measuring device

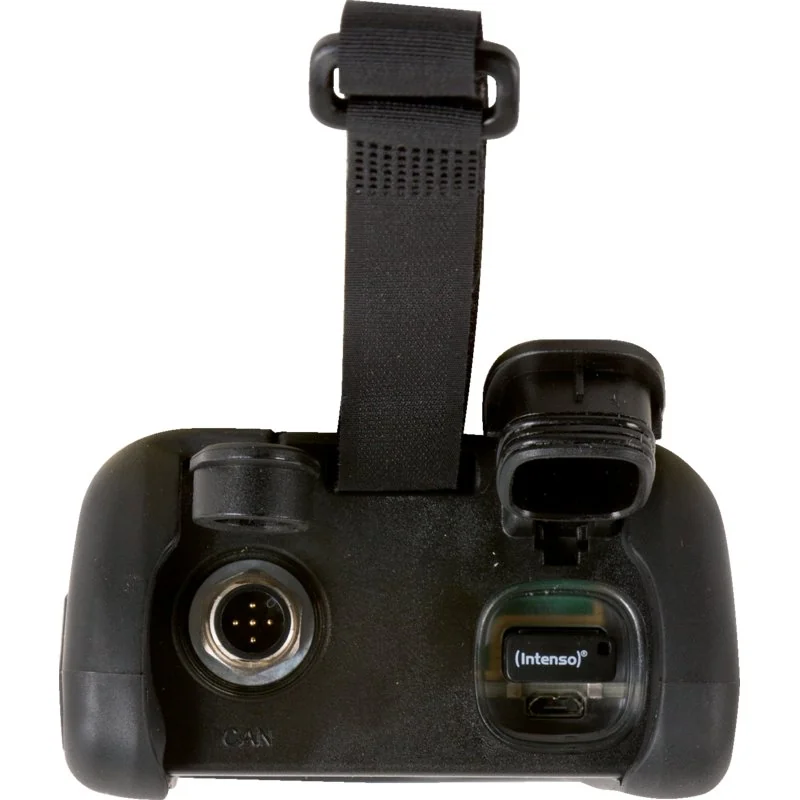

Features: Measuring device for measuring operating pressure, peak pressure, differential pressure, media temperature, flow rate and speed multi-line backlit LCD display max. 3 sensors can be connected simultaneously (CAN version) internal memory for 15000 data records external memory via USB memory stick max. CAN bus length: 50m (CAN version) Technical information: The PPC-04-plus-CAN measuring device has been specially developed for the constantly increasing demands in hydraulic and pneumatic systems. It is ideally suited for measuring operating pressure, peak pressure, differential pressure, media temperature, flow rate and speed. In the CAN version, the PPC-04-plus-CAN has a CAN interface and can be operated with up to three digital sensors. This variant offers automatic sensor recognition, thus eliminating tedious and often time-consuming parameterization of sensors. The devices can be easily controlled via the intuitively operable keyboard, and the measuring units can be changed via the menu, among other things. With the PPC-04-plus devices, up to 15000 data records and 270000 measured values can be recorded and stored. The included PPC software is compatible with common PC operating systems and enables various evaluations.
