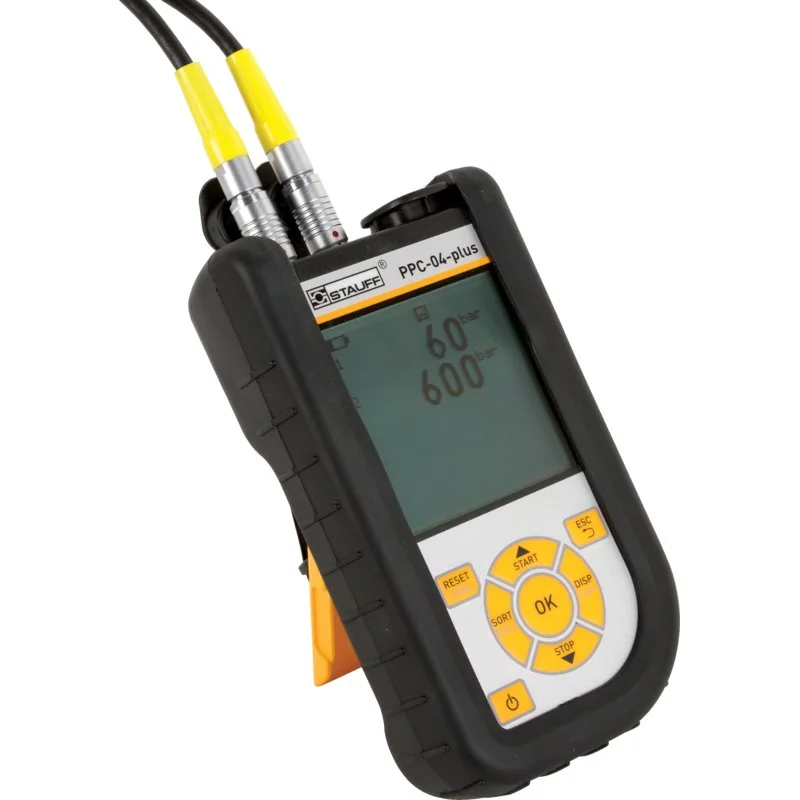

STAUFF - PPC-04-SET-2-060/600/000 - Measuring device

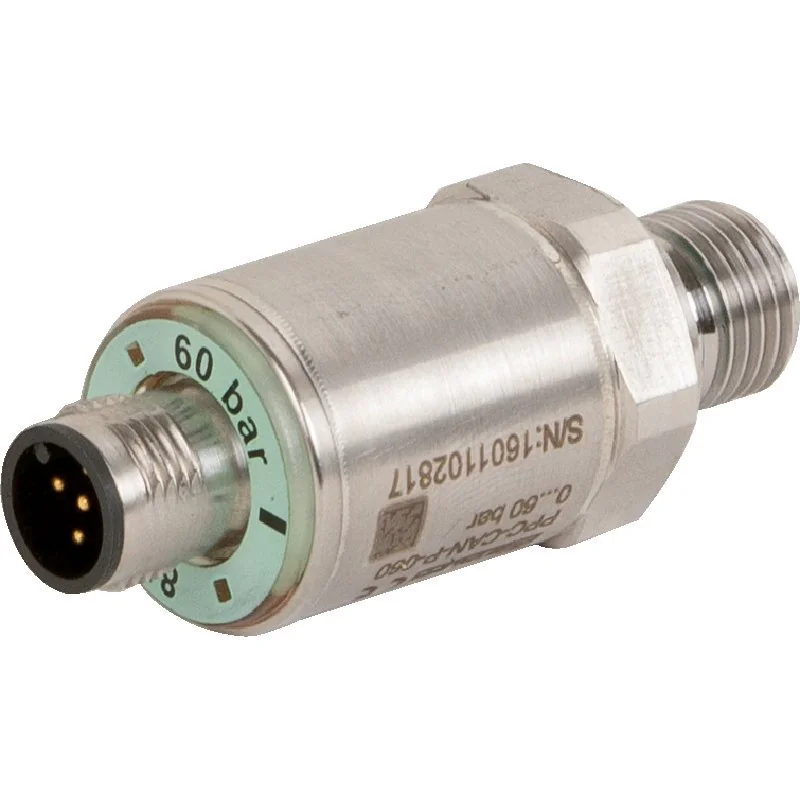

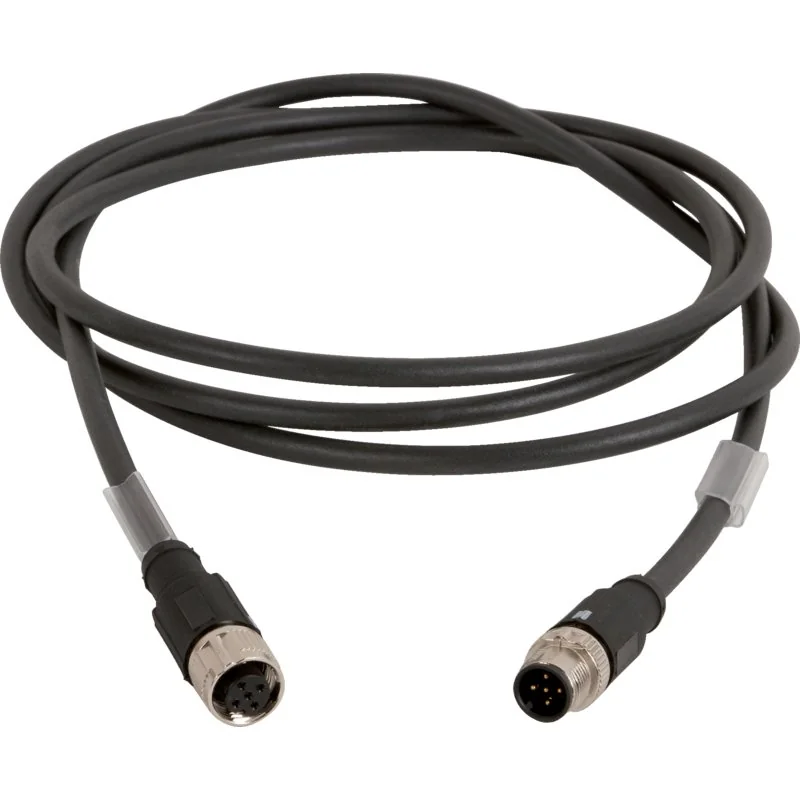

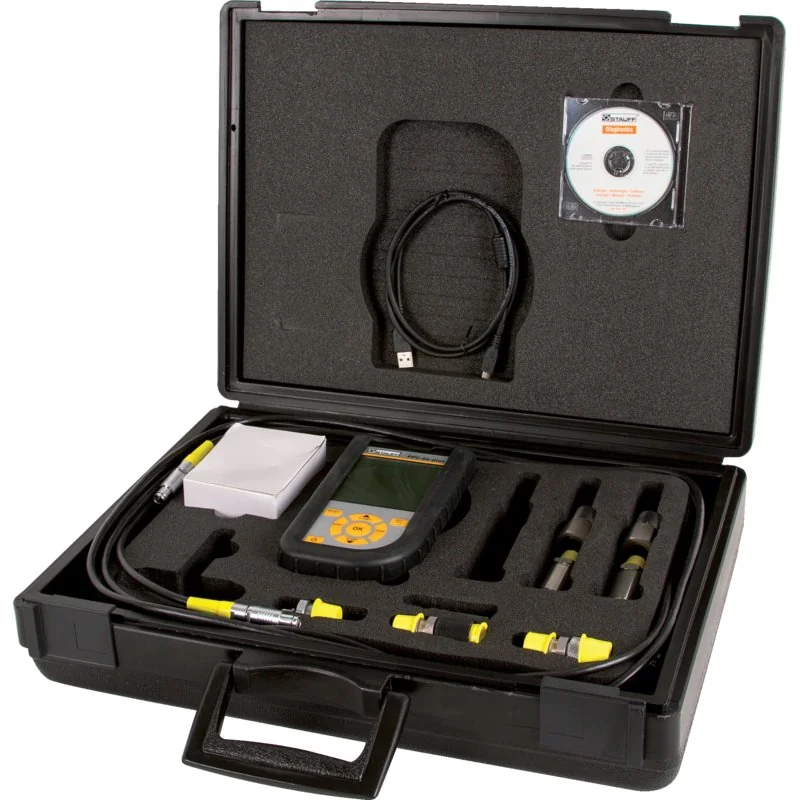

Features: Measuring device for measuring operating pressure, peak pressure, differential pressure, media temperature, flow rate and speed multi-line backlit LCD display max. 2 analog sensors can be connected simultaneously internal memory for 15000 data records external memory via USB memory stick Set consists of: 1x Case 1x Measuring device PPC-04-plus 1x Power supply unit incl. country adapter 1x Pressure sensor 60bar with adapter Stauff Test M16x2 1x Pressure sensor 600bar with adapter Stauff Test M16x2 2x Connection cable 3m 3x Adapter SAD for Stauff Test Operating instructions CD, PC Software, PC connection cable USB Technical information: The PPC-04-plus measuring device has been specially developed for the constantly increasing demands in hydraulic and pneumatic systems. It is ideally suited for measuring operating pressure, peak pressure, differential pressure, media temperature, flow rate and speed. In the analog version, the PPC-04-plus has two separate inputs for connecting two analog sensors. This variant offers automatic sensor recognition, thus eliminating tedious and often time-consuming parameterization of sensors. The devices can be easily controlled via the intuitively operable keyboard, and the measuring units can be changed via the menu, among other things. With the PPC-04-plus devices, up to 15000 data records and 270000 measured values can be recorded and stored. The included PPC software is compatible with common PC operating systems and enables various evaluations.
