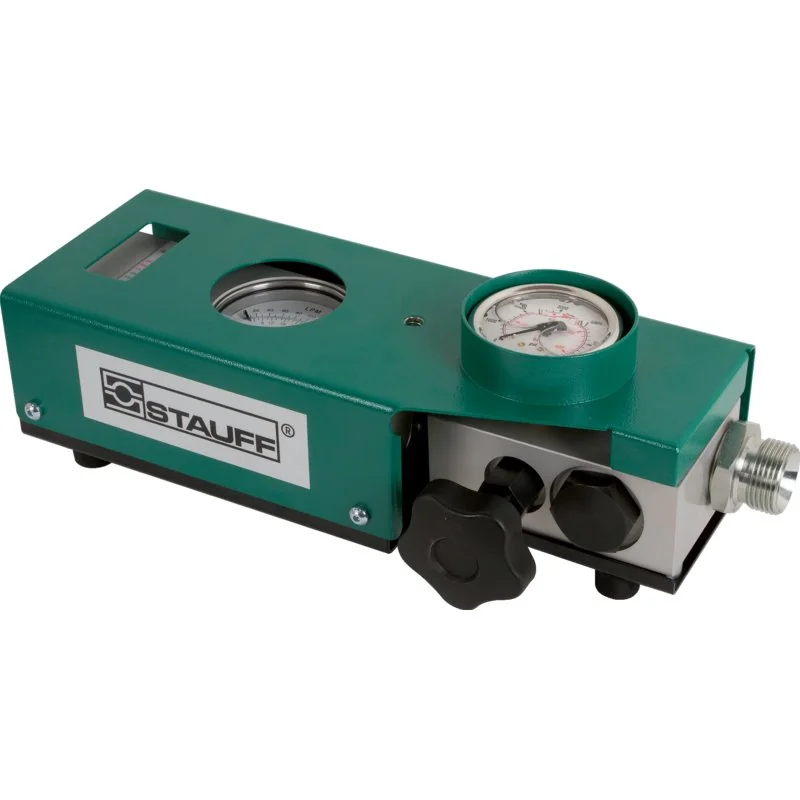

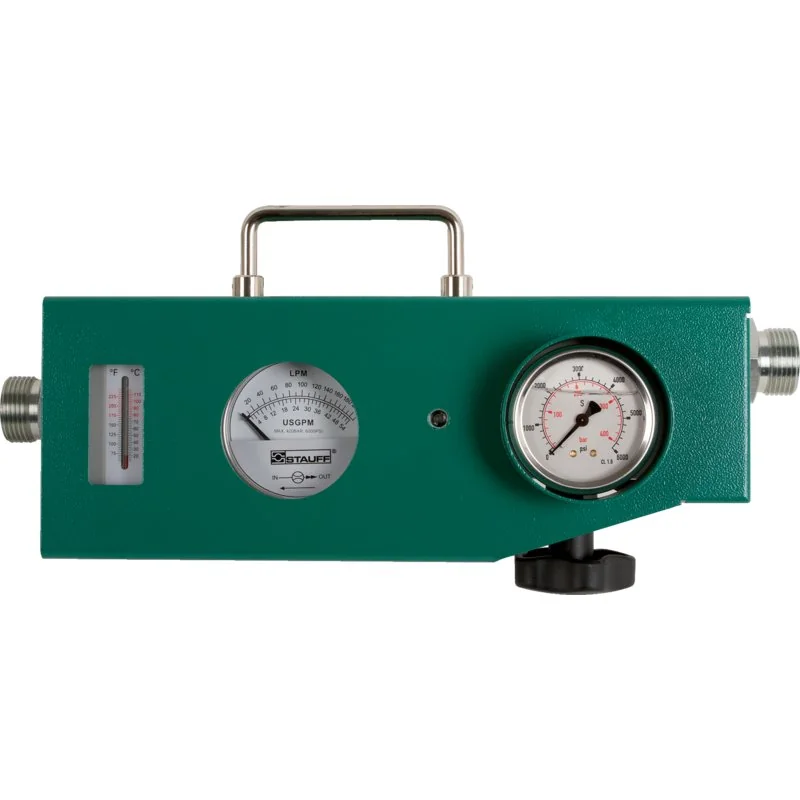

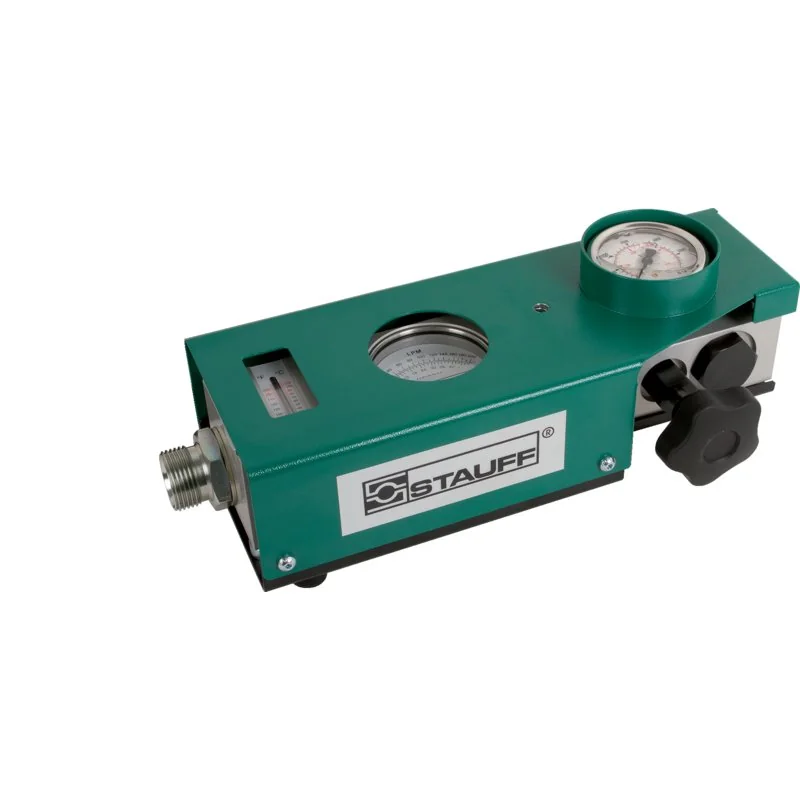

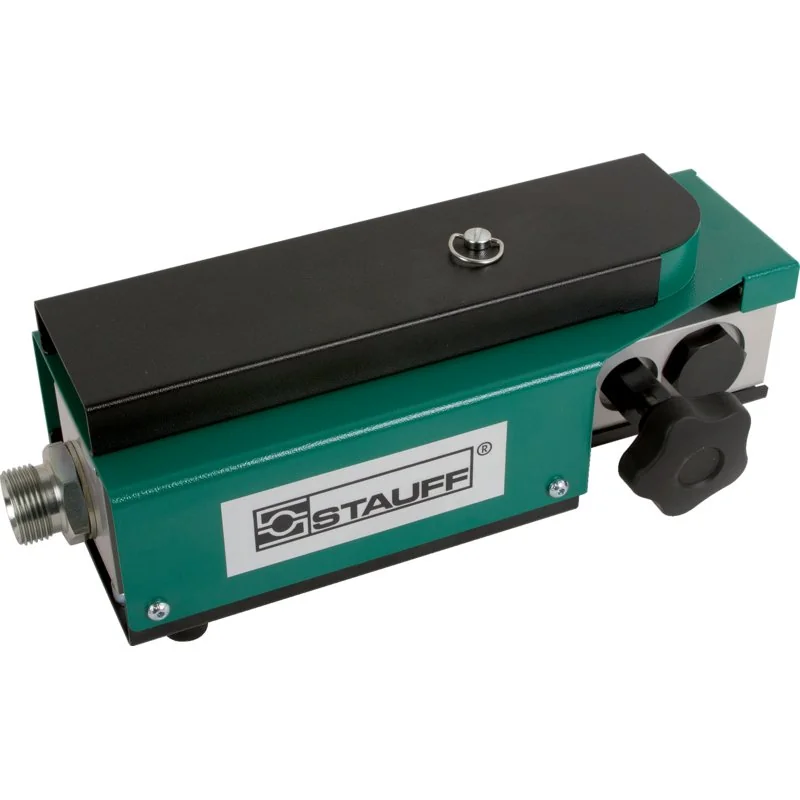

STAUFF - SDMKR-750-A-120-T - Flow measuring device

Features: suitable for mineral oils designed for straight pipeline installation ƒ mechanical operation (mains-independent) ƒƒcontrol of working pressure via a loading valve ƒƒflow measurement in l/min and GPM Housing material aluminum Connection external thread G1" Flow measuring range: 5 to 120 l/min Temperature range: up to +80°C continuous operation, +110°C temporary ( 10 Min.) Operating pressure: max. 420 bar Accuracy: 4% +/- full scale value Technical information: With three displays for measuring flow, pressure and temperature. Analog measuring device for determining the flow of hydraulic media in mobile and industrial hydraulics. For load testing of the hydraulic system, the SDMKR is equipped with a loading valve for targeted control of the working pressure. Furthermore, this product can also be flowed through in reverse (without flow measurement).
