Stauff - SKPF12IMF22 - Stauff Quick Coupling F HP10-1-IMF22
Stauff - SKPF12IMF22 - Stauff Quick Coupling F HP10-1-IMF22
Stauff - SKPF12IMF22 - Stauff Quick Coupling F HP10-1-IMF22
Stauff - SKPF12IMF22 - Stauff Quick Coupling F HP10-1-IMF22
Stauff - SKPF12IMF22 - Stauff Quick Coupling F HP10-1-IMF22

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping on orders over €60

Pay Securely with

Stauff - SKPF12IMF22 - Stauff Quick Coupling F HP10-1-IMF22

Stauff - SKPF12IMF22 - Stauff Quick Coupling F HP10-1-IMF22

€8.82

(Excl. VAT)

Price

(Excl. VAT)

€8.82

Stauff
Stauff specializes in hydraulic filtration, measurement, and connection systems for agricultural and forestry machinery. Their solutions optimize fluid cleanliness and system efficiency in tractors and implements. The brand is recognized for modular, easy-to-maintain components. Shop more than 515 genuine Stauff spare parts.

Product Details

Brand
Stauff
Unit
Each
Shape
Straight - 2 connection sides
Material
Steel
Size code
BG 3
Properties
Agricultural standard coupling Push-pull principle Breakaway function Locks on both sides Axial actuation of locking sleeve in both directions (double acting)
ISO standard
7241-1-A
Total length
70 mm
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
Outside diameter
38 mm
Working pressure
250 BAR
Application range
For universal use Agricultural machines Municipal services technology Mineral oil-based fluids
Surface treatment
White passivated
Connection 2, type
Thread
Connection no 1 type
Quick coupling
Max working temperature
100 °C
Connection no 1 diameter
20,6 mm
Min. working temperature
-30 °C
Connection 2, thread type
Metric
Connectable under pressure
No
Connection 2, thread pitch
1.50 mm
Connection 2, thread diameter
M22
AConnection no 1 thread diameter
22 mm
Connection 2, type - male/female
Female
Connection no 1 type - male/female
Female
Manufacturer
Stauff

Similar items you might like

  • Stauff

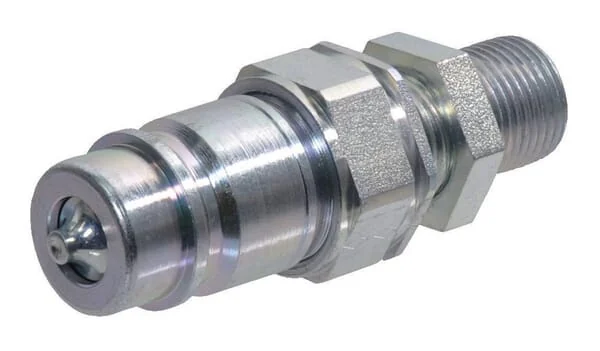

    Stauff - SKPM06N14 - Stauff Push-In Fitting HP04-2-N0814
