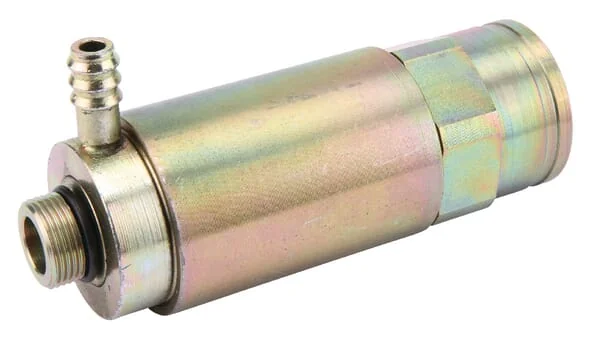

Stauff - UDKF12D22 - Stauff Coupling Housing M 22x1.5
Stauff - UDKF12D22 - Stauff Coupling Housing M 22x1.5
Stauff - UDKF12D22 - Stauff Coupling Housing M 22x1.5
Stauff - UDKF12D22 - Stauff Coupling Housing M 22x1.5

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping

Pay Securely with

Stauff - UDKF12D22 - Stauff Coupling Housing M 22x1.5

Stauff - UDKF12D22 - Stauff Coupling Housing M 22x1.5

€86.07

(Excl. VAT)

Price

(Excl. VAT)

€86.07

Stauff
Stauff specializes in hydraulic filtration, measurement, and connection systems for agricultural and forestry machinery. Their solutions optimize fluid cleanliness and system efficiency in tractors and implements. The brand is recognized for modular, easy-to-maintain components. Shop more than 515 genuine Stauff spare parts.

Product Details

Brand
STAUFF
Unit
Each
Shape
Straight - 2 connection sides
ISO standard
7241-1-A
Total length
139 mm
Technical info
This couplings can still be coupled or uncoupled when the carrier side as wll as the probe side are subjekt to pressures of up to 200 bar.
Long description
Quick release coupling UDK-F female
Outside diameter
46 mm
Working pressure
250 BAR
Connection 2, type
Thread
Connection no 1 type
Quick coupling
Interchangeable with
Vosswinkel SKP12
Max working temperature
100 °C
Connection no 1 diameter
46 mm
Min. working temperature
-20 °C
Connection 2, thread type
Metric
Connectable under pressure
No
Connection 2, thread pitch
1.50 mm
Connection no 1 wrench size
46.0 mm
Connection 2, thread diameter
M22
Connection 2, type - male/female
Female
Connection no 1 type - male/female
Male
Manufacturer
STAUFF
