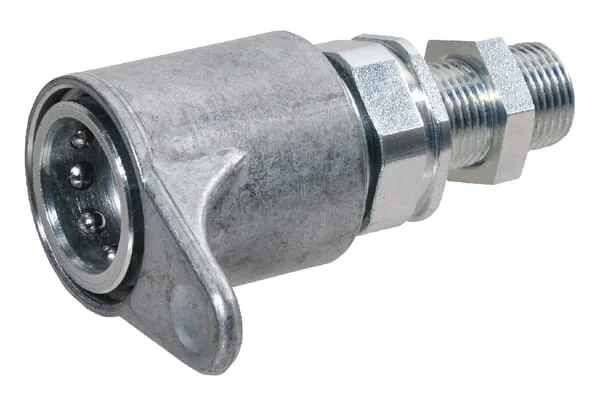

Stauff - ZPF10N22 - Stauff Lip Quick Coupling 1/2-M22x1.5-15L Shot - 8716106985272

OEM Quality

SKU: stauff-zpf10n22

Stauff - ZPF10N22 - Stauff Lip Quick Coupling 1/2-M22x1.5-15L Shot - 8716106985272

€22.23€19.00 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€22.23

Brand
Stauff
Part Numbers
8716106985272; ZPF10N22
Unit
Each
Shape
Straight - 2 connection sides
Series
15L
Details
With pressure ring
Benefits
Simple actuation
Size code
BG 3
Properties
Push-pull principle Axial actuation of locking sleeve in both directions (double acting) Space-saving mounting possible
ISO standard
7241-1-A
CTotal length
86 mm
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
Outside diameter
38 mm
Working pressure
250 BAR
Application range
Agricultural machinery Mineral oil-based fluids
Surface treatment
White passivated
Connection 2, type
Thread
Connection no 1 type
Quick coupling
AConnection 2, diameter
15 mm
Max working temperature
100 °C
Min. working temperature
-30 °C
Connection 2, thread type
Metric
DConnection no 1 diameter
38 mm
Connectable under pressure
No
Connection 2, thread pitch
1.50 mm
SWConnection no 1 wrench size
30.0 mm
AConnection 2, thread diameter
M22
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Female
Manufacturer
Stauff

The Stauff ZPF10N22 is an aftermarket quick coupling made to OEM quality standards. It features a straight design with push-pull operation and axial actuation in both directions. The coupling belongs to the 15L series and includes NBR/PTFE seals. It meets ISO 7241-1-A standard.
Stauff
Stauff specializes in hydraulic filtration, measurement, and connection systems for agricultural and forestry machinery. Their solutions optimize fluid cleanliness and system efficiency in tractors and implements. The brand is recognized for modular, easy-to-maintain components. Shop more than 642 genuine Stauff spare parts.
