Vogelsang - APK0000187 - Rotary Lobe Pump R116-240S + Frame

OEM Quality

SKU: vogelsang-apk0000187

Vogelsang - APK0000187 - Rotary Lobe Pump R116-240S + Frame

€6,742.27

(excl. VAT)
RRP:€7,228.40
Save €486.47

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€6,742.27

Robust, reliable and proven Highly resistant against dry running
Vogelsang
Vogelsang is a German company known for its innovative machinery and systems in the agricultural, biogas, industrial, and municipal sectors. Founded in 1929 by Hermann Vogelsang in Essen (Oldenburg), Germany, the company has grown from a small workshop into an international leader. It remains a family-owned business, emphasizing continuous development and high-quality engineering. Vogelsang's agricultural product lines are particularly renowned for their advanced slurry and manure management solutions. This includes highly efficient rotary lobe pumps, precision distributors for nutrient application, and flexible spreading technology. The brand's systems, such as the ExaCut precision distributor and the SyreN system for nutrient optimization, are designed to enhance efficiency, reduce environmental impact, and improve soil health in modern farming operations. At Partao, you can find a comprehensive selection of Vogelsang spare parts, including Bale Handling Equipment, Ball Bearings, Bolts & Fasteners, Brackets & Supports, and Chopper Blades. Over 452 genuine Vogelsang spare parts are available at Partao. Vogelsang equipment is widely adopted by livestock farmers, biogas plant operators, and agricultural contractors who prioritize efficient and environmentally responsible nutrient management. The brand's robust and technologically advanced solutions are valued for their reliability and precision, contributing to sustainable farming practices and operational cost savings across various European agricultural regions.

DN
150 mm
a.
812 mm
b.
330 mm
Unit
Each
Weight
160 kg
Benefits
Long service life
Stroke v
4,64 l
Flow max.
3000 l/min
Length L1
165 mm
Length L2
331 mm
Properties
Greasable shaft seals Fitted with bearings on both sides Lobe material: SBR70 With steel protective plates Self-priming to 7.5 m Can operate in both directions of flow Low pulse sensitivity
Consists of
Lobe pump Galvanised three-point bracket PTO shaft (1 3/8" 6-piece for tractor drive) with overload protection PTO shaft protective cap 2 connecting pipes with flanges
Drive shaft
2x 1 3/8" 6-pieces, for tractor drive
Torque max.
481 N·m
Oil capacity
1 l
Pressure max.
5 BAR
Pump capacity
180 m³/h
Rotation max.
650 r/min
Application range
For pumping tasks in farm and field

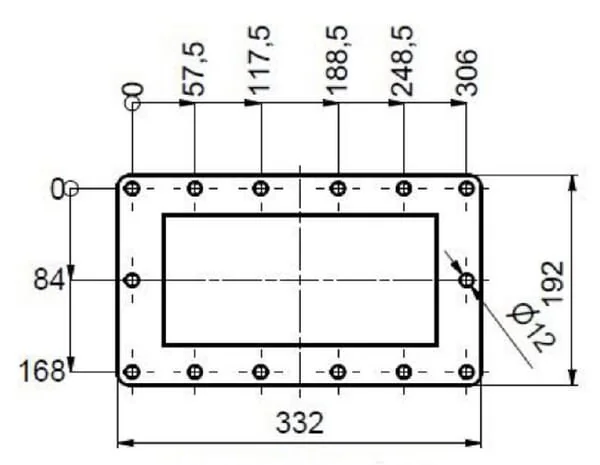

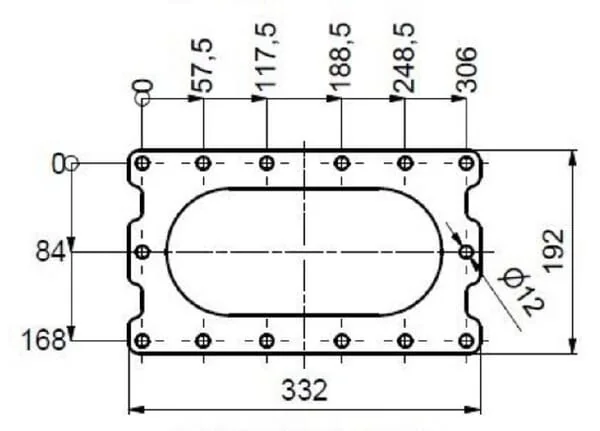

Technical drawing
GBO.019
Flange diameter (in)
6 Inch
Manufacturer
Vogelsang
