Voss - DGWEV28LR1 - Rotary Coupling 28L R1"

Voss - DGWEV28LR1 - Rotary Coupling 28L R1"

Voss - DGWEV28LR1 - Rotary Coupling 28L R1"

Voss - DGWEV28LR1 - Rotary Coupling 28L R1"

Voss - DGWEV28LR1 - Rotary Coupling 28L R1"

Voss - DGWEV28LR1 - Rotary Coupling 28L R1"

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

Voss - DGWEV28LR1 - Rotary Coupling 28L R1"

Voss - DGWEV28LR1 - Rotary Coupling 28L R1"

€163.00

(Excl. VAT)

Price

(Excl. VAT)

€163.00

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Unit

Each

Angle

90 °

Shape

Elbow - 2 connection sides

Length

72 mm

Series

28L

Includes

Swivel coupling Cutting ring Gland nuts

DIN standard

2401 2353 228 3852 259

ISO standard

228

Pipe diameter

28 mm

Surface treatment

Zinc, Nickel-plated

Connection 2, type

Thread

Flow rate at 2 bar

40 l/min

Connection no 1 type

Thread

Max working pressure

100 BAR

LConnections distance

29,5 mm

S1Connection no 1 hex size

46 mm

Connection no 1 thread type

BSP

S2Connection 2, wrench size

41.0 mm

S3Connection no 1 wrench size

41.0 mm

KConnection no 1 thread length

18 mm

Connection no 1 thread diameter

1 Inch

L3Connection centre to insert distance

42,5 mm

L2Connection no 1 center to end distance

46 mm

Manufacturer

Voss

Similar items you might like

Voss - DGWEV8SM14 - Rotary Coupling 8S M14
Voss
€45.78

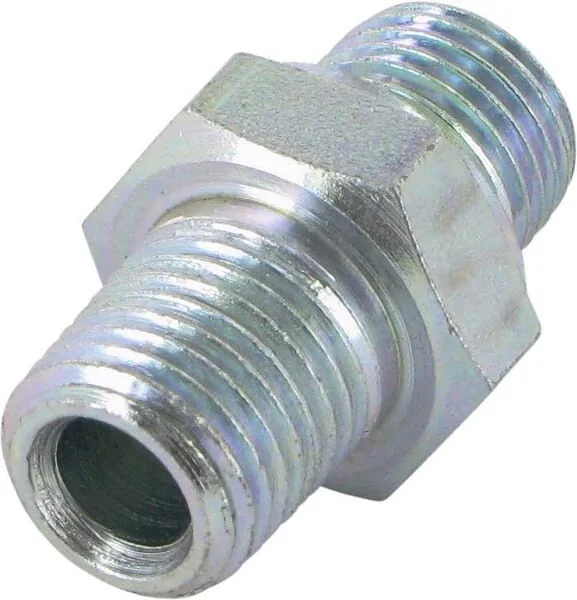

Voss - DNBBT04 - Adaptor 1/4 BSP X 1/4 BSPT
Voss
€3.16

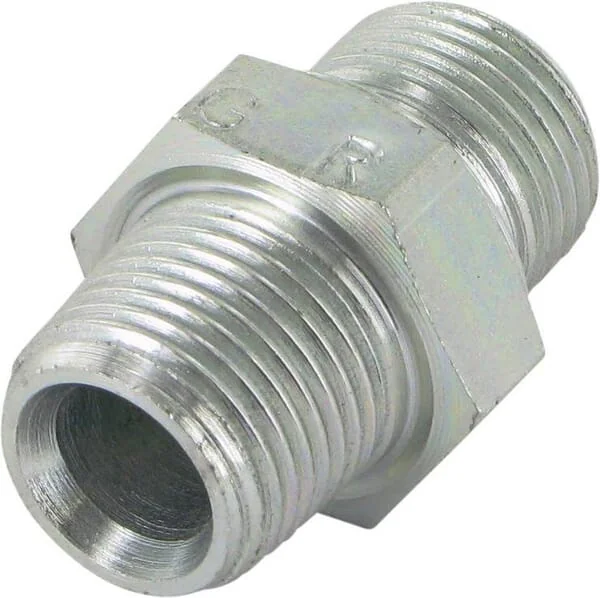

Voss - DNBBT06 - Double Nipple 3/8 BSP X 3/8 BSPT
Voss
€3.90

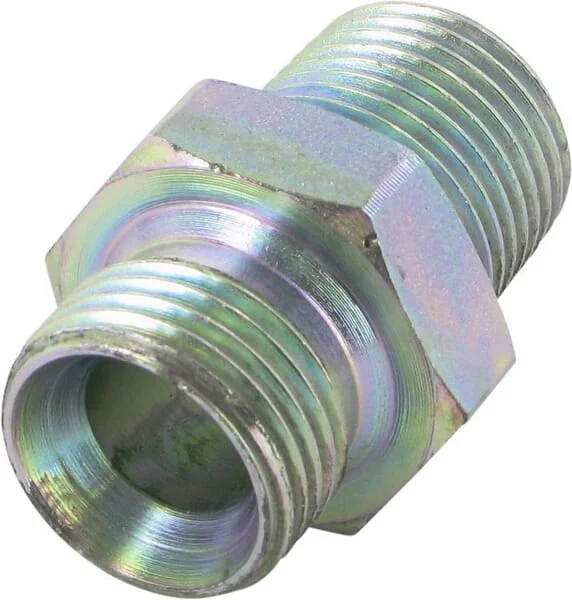

Voss - DNBBT08 - Adaptor 1/2 BSP X 1/2 BSPT
Voss
€6.12

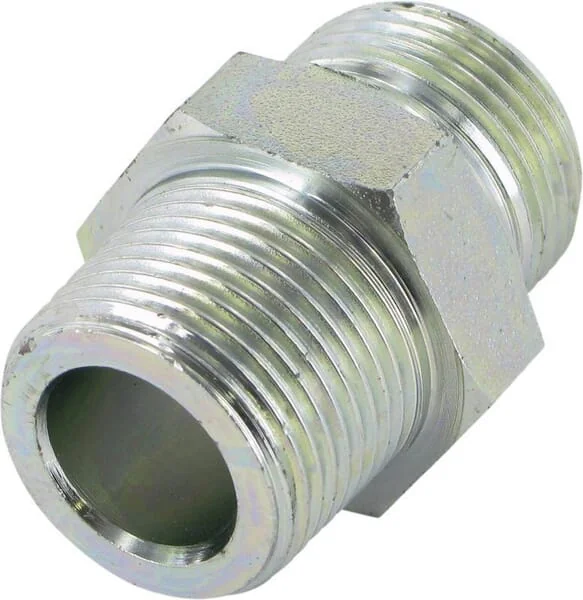

Voss - DNBBT12 - Double Nipple 3/4 BSP X 3/4 BSPT
