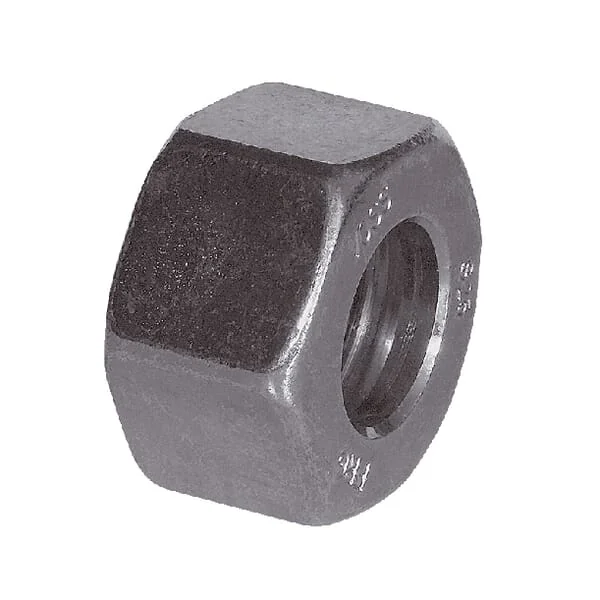

Voss - DGWEV6SR14 - Voss Swivel Coupling 6S R1/4

Voss - DGWEV6SR14 - Voss Swivel Coupling 6S R1/4

Voss - DGWEV6SR14 - Voss Swivel Coupling 6S R1/4

Voss - DGWEV6SR14 - Voss Swivel Coupling 6S R1/4

Voss - DGWEV6SR14 - Voss Swivel Coupling 6S R1/4

Voss - DGWEV6SR14 - Voss Swivel Coupling 6S R1/4

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

Voss - DGWEV6SR14 - Voss Swivel Coupling 6S R1/4

Voss - DGWEV6SR14 - Voss Swivel Coupling 6S R1/4

€45.47

(Excl. VAT)

Price

(Excl. VAT)

€45.47

Number of products

Product Description

2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance Can swivel under pressure For slow rotation or swivelling only

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Unit

Each

Angle

90 °

Shape

Elbow - 2 connection sides

Length

47 mm

Series

6S

Includes

Swivel coupling Cutting ring Gland nuts

DIN standard

2401 2353 228 3852 259

ISO standard

228

Pipe diameter

6 mm

Product details

2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance Can swivel under pressure For slow rotation or swivelling only

Surface treatment

Zinc, Nickel-plated

Connection 2, type

Thread

Flow rate at 2 bar

40 l/min

Connection no 1 type

Thread

Max working pressure

400 BAR

LConnections distance

18,5 mm

S1Connection no 1 hex size

27 mm

Connection no 1 thread type

BSP

S2Connection 2, wrench size

17.0 mm

S3Connection no 1 wrench size

23.0 mm

KConnection no 1 thread length

12 mm

Connection no 1 thread diameter

1/4 Inch

L3Connection centre to insert distance

26,5 mm

L2Connection no 1 center to end distance

33 mm

Manufacturer

Voss
