VOSS - ETSD20S - Adjustable T-fitting 20S

OEM Quality

SKU: voss-etsd20s

VOSS - ETSD20S - Adjustable T-fitting 20S

€17.60

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€17.60

Pre-assembled with O-ring Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Viton seal available on request
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Brand
Voss
Part Numbers
etsd20s
Pros
Reduced risk of leakage
Unit
Each
Shape
Tee (T) - 3 connections
Length
74 mm
Series
S
DIN standard
2353 3865 2401
Pipe diameter
20 mm
S1Body height
27 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
16,22 mm14 mm
Product details
Pre-assembled with O-ring Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Viton seal available on request
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Connection 3, type
Swivel nut
Connection 3, length
65
Connection no 1 type
Thread
Max working pressure
420 BAR
Sealing ring thickness
2,4 mm
Connection 2, thread type
Metric
Connection 2, wrench size
27.0 mm
Connection 3, thread type
Metric
Connection 2, thread pitch
2.00 mm
Connection 3, thread pitch
2.00 mm
Connection no 1 thread type
Metric
Connection no 1 thread pitch
2.00 mm
Sealing ring inside diameter
17,3 mm
Connection 2, thread diameter
M30
Connection 3, thread diameter
M30
S2Connection no 1 wrench size
36.0 mm
Connection no 1 thread diameter
M30
Connection 2, type - male/female
Male
Connection 3, type - male/female
Female
Connection no 1 type - male/female
Male

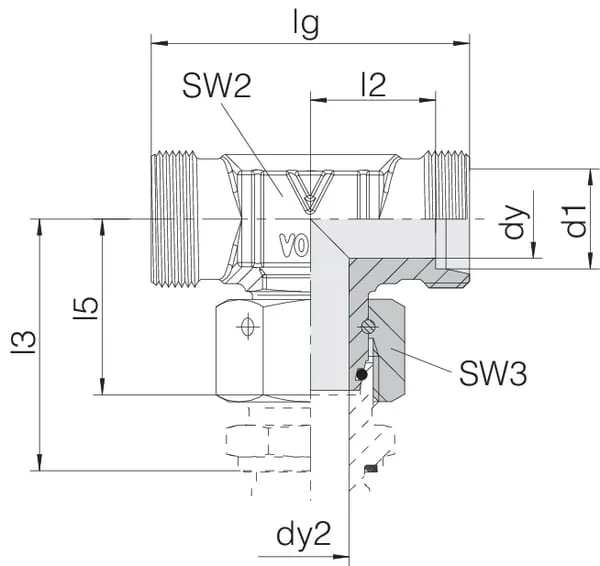

LConnection 3 centre to end distance
26,5 mm
L2Connection 2, centre to end distance
44,5 mm
L1Connection no 1 center to end distance
48 mm
EAN
8719607078535
Manufacturer
Voss
