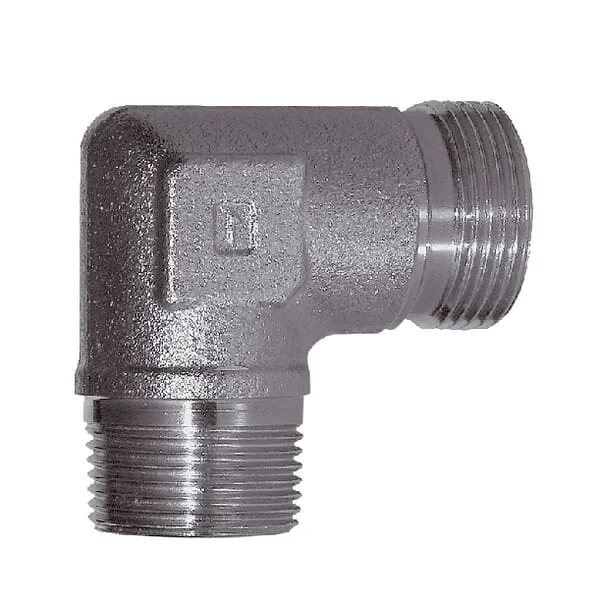

VOSS - WES15LM18 - Male elbow 15L-M18

OEM Quality

SKU: voss-wes15lm18

VOSS - WES15LM18 - Male elbow 15L-M18

€7.59€6.49 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€7.59

Brand
Voss
Part Numbers
wes15lm18
Pros
Reduced risk of leakage
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
L
Body height
19 mm
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
15 mm
Inside diameter
11 mm12 mm
Product details
Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance
Long description
Application range: Hydraulic hose Hydraulic pipes Benefits: Low risk of leakage Details: Connect directly to a metric hose nut or a pre-assembled coupling Properties: Mu
Surface treatment
Zinc Nickel
Max working pressure
315 BAR

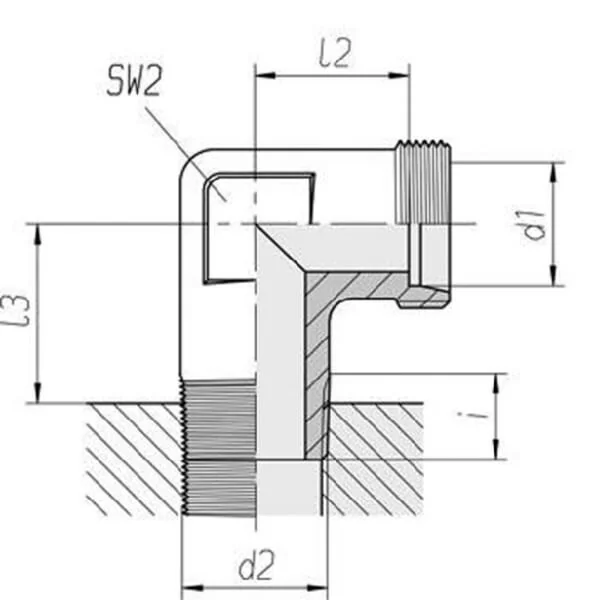

Connection 2, thread type
Metric
Connection 2, thread pitch
1.50 mm
d2Connection no 1 diameter
15 mm
Connection no 1 thread type
Metric
S2Connection 2, wrench size
19.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
M18
S1Connection no 1 wrench size
27.0 mm
KConnection no 1 thread length
12 mm
Connection no 1 thread diameter
18 mm
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Female
L2Connection 2, centre to end distance
21 mm
L3Connection no 1 center to end distance
24 mm
Manufacturer
Voss

Application range: Hydraulic hose Hydraulic pipes Benefits: Low risk of leakage Details: Connect directly to a metric hose nut or a pre-assembled coupling Properties: Mu
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,730 genuine Voss spare parts.
