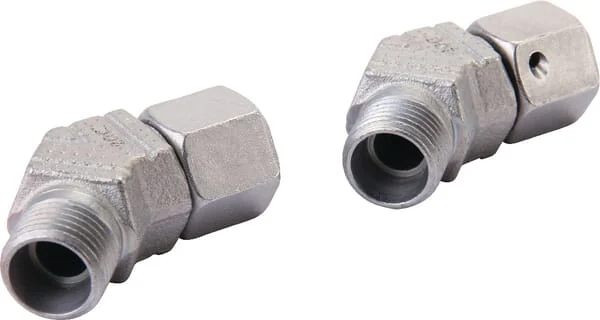

VOSS - EVSD10S - 45° cutting ring connection 10S
VOSS - EVSD10S - 45° cutting ring connection 10S
VOSS - EVSD10S - 45° cutting ring connection 10S
VOSS - EVSD10S - 45° cutting ring connection 10S
VOSS - EVSD10S - 45° cutting ring connection 10S
VOSS - EVSD10S - 45° cutting ring connection 10S

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping on orders over €60

Pay Securely with

VOSS - EVSD10S - 45° cutting ring connection 10S

VOSS - EVSD10S - 45° cutting ring connection 10S

€15.82

(Excl. VAT)

Price

(Excl. VAT)

€15.82

Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Angle
45 °
Shape
Elbow - 2 connection sides
Length
16,5 mm
Series
10S
Includes
Body Pre-assembled gland nut and cutting ring Excluding separate gland nut and cutting ring
Cone angle
24 °
DIN standard
2401 2353
Pipe diameter
10 mm
Inside diameter
7 mm6 mm
Product details
Pre-assembled with O-ring Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance
Connection 2, type
O-ring cone
Connection no 1 type
Cutting ring
Max working pressure
630 BAR
Connection 2, diameter
10 mm
Connection no 1 diameter
10 mm
Connection 2, thread type
Metric
Connection 2, wrench size
22.0 mm
Connection 2, thread pitch
1.50 mm
Connection no 1 thread type
Metric
Connection no 1 wrench size
19.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
M18
Connection no 1 thread diameter
M18
Connection 2, type - male/female
Female
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
24 mm
Connection no 1 center to end distance
30 mm
Manufacturer
Voss
