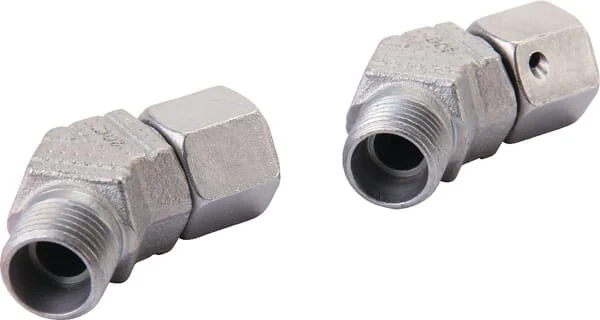

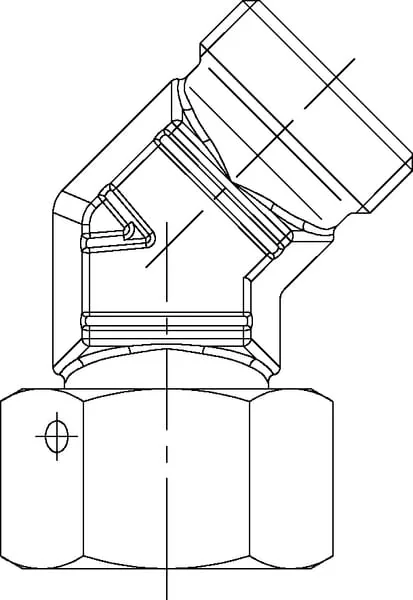

Voss - EVSD22L - Adjustable 45° Elbow 22L
Voss - EVSD22L - Adjustable 45° Elbow 22L
Voss - EVSD22L - Adjustable 45° Elbow 22L
Voss - EVSD22L - Adjustable 45° Elbow 22L
Voss - EVSD22L - Adjustable 45° Elbow 22L
Voss - EVSD22L - Adjustable 45° Elbow 22L

In stock - ready to ship

Order now for delivery between 13 May and 16 May
Free shipping on orders over €60

Pay Securely with

Voss - EVSD22L - Adjustable 45° Elbow 22L

Voss - EVSD22L - Adjustable 45° Elbow 22L

€19.46

(Excl. VAT)

Price

(Excl. VAT)

€19.46

Product Description

The VOSS EVSD22L is a genuine VOSS adjustable 45° elbow fitting, designed for hydraulic applications. This 22L series elbow provides a flexible connection point, allowing for precise angle adjustments in hydraulic lines. Manufactured to VOSS's high standards, it ensures leak-free performance and durability in demanding industrial and agricultural environments. Ideal for optimizing hose and tube routing in confined spaces.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Angle
45 °
Shape
Elbow - 2 connection sides
Length
22,5 mm
Series
22L
Includes
Body Pre-assembled gland nut and cutting ring Excluding separate gland nut and cutting ring
Cone angle
24 °
DIN standard
2401 2353
Pipe diameter
22 mm
Inside diameter
19 mm17 mm
Product details
Pre-assembled with O-ring Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance
Connection 2, type
O-ring cone
Connection no 1 type
Cutting ring
Max working pressure
160 BAR
Connection 2, diameter
22 mm
Connection no 1 diameter
22 mm
Connection 2, thread type
Metric
Connection 2, wrench size
36.0 mm
Connection 2, thread pitch
2.00 mm
Connection no 1 thread type
Metric
Connection no 1 wrench size
27.0 mm
Connection no 1 thread pitch
2.00 mm
Connection 2, thread diameter
M30
Connection no 1 thread diameter
M30
Connection 2, type - male/female
Female
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
30 mm
Connection no 1 center to end distance
38,5 mm
Manufacturer
Voss
