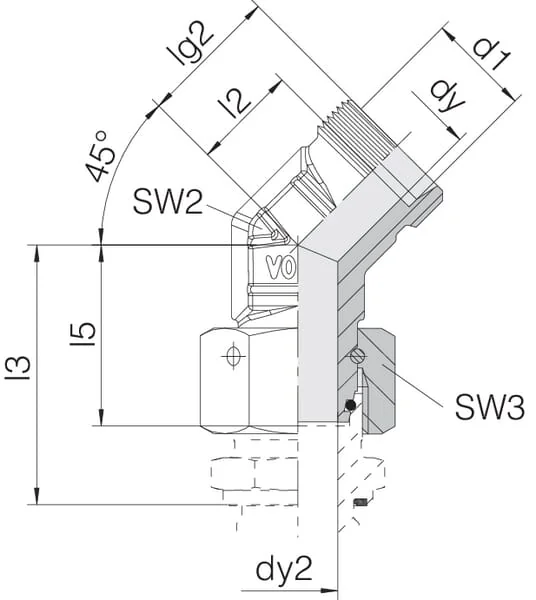

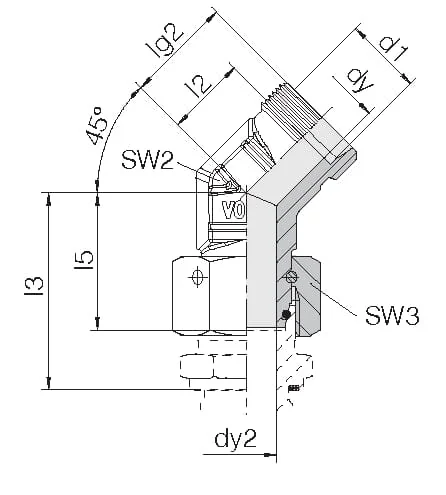

Voss - EVSD30S - Cutting Ring Connector 30S 45°
Voss - EVSD30S - Cutting Ring Connector 30S 45°
Voss - EVSD30S - Cutting Ring Connector 30S 45°
Voss - EVSD30S - Cutting Ring Connector 30S 45°
Voss - EVSD30S - Cutting Ring Connector 30S 45°
Voss - EVSD30S - Cutting Ring Connector 30S 45°

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping on orders over €60

Pay Securely with

Voss - EVSD30S - Cutting Ring Connector 30S 45°

Voss - EVSD30S - Cutting Ring Connector 30S 45°

€41.58

(Excl. VAT)

Price

(Excl. VAT)

€41.58

Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Angle
45 °
Shape
Elbow - 2 connection sides
Length
24 mm
Series
30S
Includes
Body Pre-assembled gland nut and cutting ring Excluding separate gland nut and cutting ring
Cone angle
24 °
DIN standard
2401 2353
Pipe diameter
30 mm
Inside diameter
25 mm23 mm
Connection 2, type
O-ring cone
Connection no 1 type
Cutting ring
Max working pressure
400 BAR
Connection 2, diameter
30 mm
Connection no 1 diameter
30 mm
Connection 2, thread type
Metric
Connection 2, wrench size
50.0 mm
Connection 2, thread pitch
2.00 mm
Connection no 1 thread type
Metric
Connection no 1 wrench size
41.0 mm
Connection no 1 thread pitch
2.00 mm
Connection 2, thread diameter
M42
Connection no 1 thread diameter
M42
Connection 2, type - male/female
Female
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
37,5 mm
Connection no 1 center to end distance
55 mm
Manufacturer
Voss

Similar items you might like

  • Voss

    Voss - EVSD35L - Cutting Ring Connector 35L 45°

    Voss

    €41.33

  • Voss

    Voss - EVSD38S - Cutting Ring Connector 38s, 45°

    Voss

    €48.51

  • Voss

    Voss - EVSD42L - Cutting Ring Connector 42l, 45°

    Voss

    €44.22

  • Voss

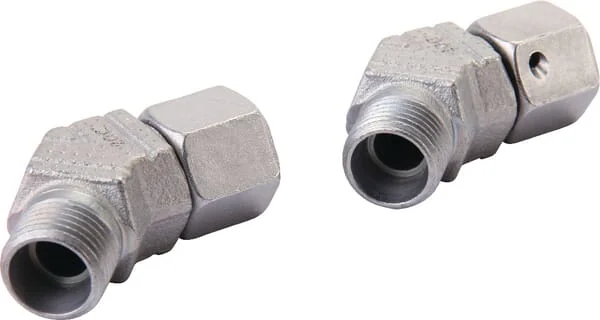

    Voss - EVSD6S - Cutting Ring Connector 6s, 45°
