Hydraulic Systems

Hoses & Fittings

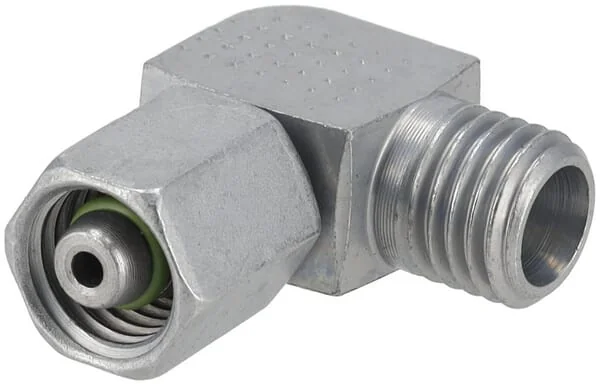

Voss - EWSD12L - Swivel Elbow Coupling 90° M18x1.5 12l

Voss - EWSD12L - Swivel Elbow Coupling 90° M18x1.5 12l

Voss - EWSD12L - Swivel Elbow Coupling 90° M18x1.5 12l

Voss - EWSD12L - Swivel Elbow Coupling 90° M18x1.5 12l

Voss - EWSD12L - Swivel Elbow Coupling 90° M18x1.5 12l

Voss - EWSD12L - Swivel Elbow Coupling 90° M18x1.5 12l

Number of products

In stock - ready to ship

Order now for delivery between 25 May and 28 May

Free shipping on orders over €60

Pay Securely with

Voss - EWSD12L - Swivel Elbow Coupling 90° M18x1.5 12l

Voss - EWSD12L - Swivel Elbow Coupling 90° M18x1.5 12l

€4.87

(Excl. VAT)

Price

(Excl. VAT)

€4.87

Number of products

Product Description

Application range: Hydraulic hose Hydraulic pipes Benefits: Low risk of leakage Details: Pre-mounted with O-ring Connect directly to a metric hose nut or a pre-assembled coupling

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Angle

90 °

Shape

Elbow - 2 connection sides

Length

17 mm

Series

12L

DIN standard

2401

Pipe diameter

12 mm

Inside diameter

10 mm8 mm

Connection 2, type

Cutting ring

Connection no 1 type

Swivel nut

Max working pressure

400 BAR

Seal material pipe side

Viton

Connection no 1 diameter

12 mm

Connection 2, thread type

Metric

Connection 2, wrench size

22.0 mm

Connection 2, thread pitch

1.50 mm

Connection no 1 thread type

Metric

Connection no 1 thread pitch

1.50 mm

Connection 2, thread diameter

M18

S2Connection no 1 wrench size

17.0 mm

Connection no 1 thread diameter

M18

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Female

LConnection centre to insert distance

29,5 mm

Connection no 1 center to end distance

32 mm

L1Connection 2, centre to end distance

24 mm

Manufacturer

Voss
