Voss - FMUBV1712WD - Voss Coupling 1-1/16 JICx3/4 BSP
Voss - FMUBV1712WD - Voss Coupling 1-1/16 JICx3/4 BSP

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

Voss - FMUBV1712WD - Voss Coupling 1-1/16 JICx3/4 BSP

Voss - FMUBV1712WD - Voss Coupling 1-1/16 JICx3/4 BSP

€27.68

(Excl. VAT)

Price

(Excl. VAT)

€27.68

Product Description

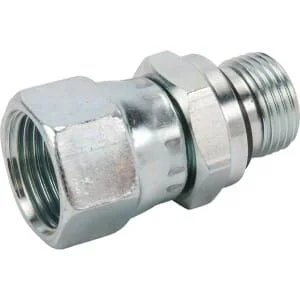

The Voss FMUBV1712WD is a genuine hydraulic union fitting, designed for robust connections in high-pressure systems. It features a 1-1/16-12 UN JIC (37° cone) thread on one end and a G 3/4-14 BSPP (parallel) thread on the other. Constructed from durable zinc-nickel plated steel, this straight fitting ensures reliable performance with a maximum operating pressure of 420 bar and a wide temperature range of -40°C to +120°C. Ideal for various hydraulic applications requiring secure and leak-free connections.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
voss
Material
Steel, zinc-nickel plated
Length mm
72.5
Weight kg
0.17
Thread 1 size
1-1/16-12 UN
Thread 1 type
JIC 37° cone
Thread 2 size
G 3/4-14
Thread 2 type
BSPP parallel
Spanner width mm
36
Max operating pressure bar
420
Operating temperature max celsius
120
Operating temperature min celsius
-40
Manufacturer
voss
