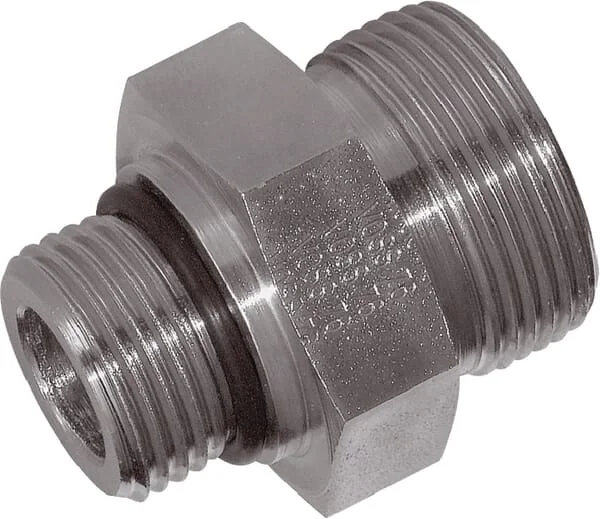

Voss - GES10L34UNF - Coupling 10L 3/4UNF

Voss - GES10L34UNF - Coupling 10L 3/4UNF

Voss - GES10L34UNF - Coupling 10L 3/4UNF

Voss - GES10L34UNF - Coupling 10L 3/4UNF

Voss - GES10L34UNF - Coupling 10L 3/4UNF

Voss - GES10L34UNF - Coupling 10L 3/4UNF

Number of products

In stock - ready to ship

Order now for delivery between 18 May and 21 May

Free shipping on orders over €60

Pay Securely with

Voss - GES10L34UNF - Coupling 10L 3/4UNF

Voss - GES10L34UNF - Coupling 10L 3/4UNF

€7.35

(Excl. VAT)

Price

(Excl. VAT)

€7.35

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Length

31 mm

Series

L

DIN standard

2353 3852 2401

SAE standard

514

Pipe diameter

10 mm

Seal material

Nitrile rubber [NBR]

Inside diameter

8 mm

Surface treatment

Zinc Nickel

Connection 2, type

Seal ring

Connection no 1 type

Cutting ring

Max working pressure

400 BAR

Max. tightening torque

55 N·m

Connection no 1 diameter

10 mm

Connection no 1 hex size

23 mm

Connection 2, thread type

UNF

Connection no 1 thread type

UNF

S2Connection 2, wrench size

19.0 mm

Connection no 1 thread pitch

1.50 mm

Connection 2, thread diameter

3/4 Inch

S1Connection no 1 wrench size

24.0 mm

Connection 2, threads per inch

16

KConnection no 1 thread length

11 mm

Connection no 1 thread diameter

M16

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Male

L1Connection 2, centre to end distance

13 mm

L2Connection no 1 center to end distance

28 mm

Manufacturer

Voss
