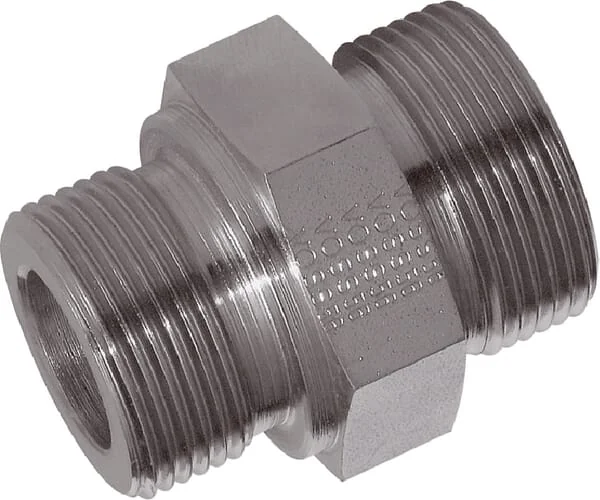

Voss - GES15LM22 - Coupling 15l M22

Voss - GES15LM22 - Coupling 15l M22

Voss - GES15LM22 - Coupling 15l M22

Voss - GES15LM22 - Coupling 15l M22

Voss - GES15LM22 - Coupling 15l M22

Voss - GES15LM22 - Coupling 15l M22

Number of products

In stock - ready to ship

Order now for delivery between 16 May and 20 May

Free shipping on orders over €60

Pay Securely with

Voss - GES15LM22 - Coupling 15l M22

Voss - GES15LM22 - Coupling 15l M22

€4.33

(Excl. VAT)

Price

(Excl. VAT)

€4.33

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Length

36 mm

Series

15L

DIN standard

2353 228 3852 2401

ISO standard

228

Pipe diameter

15 mm

Inside diameter

12 mm

Surface treatment

Zinc Nickel

Connection 2, type

Thread

Connection no 1 type

Cutting ring

Max working pressure

400 BAR

Max. tightening torque

170 N·m

Connection no 1 diameter

15 mm

Connection no 1 hex size

27 mm

Connection 2, thread type

Metric

Connection no 1 thread type

Metric

S2Connection 2, wrench size

27.0 mm

d1Connection 2, thread pitch

1.50 mm

S1Connection no 1 wrench size

27.0 mm

KConnection no 1 thread length

14 mm

d2Connection no 1 thread pitch

1.50 mm

d1Connection 2, thread diameter

M22

Connection 2, type - male/female

Male

d2Connection no 1 thread diameter

22 mm

Connection no 1 type - male/female

Male

L1Connection 2, centre to end distance

15 mm

L2Connection no 1 center to end distance

30 mm

Manufacturer

Voss

Similar items you might like

Voss - GES15LM22WD - Coupling 15L M22
Voss
€4.65
Voss - GES15LR12 - Cut Ring Coupling 15L M22x1,5 - BSP 1/2" - Male
Voss
€3.72
Voss - GES15LR12ACH60 - Adaptor 15L-R1/2
Voss
€3.34
Voss - GES15LR12WD - Coupling 15L R1/2
Voss
€3.57
Voss - GES15LR14 - Cut Ring Coupling 15L M22x1,5 - BSP 1/4" - Male
Voss
€6.69
Voss - GES15LR34 - Cut Ring Coupling 15L M22x1,5 - BSP 3/4" - Male
Voss
€5.13
Voss - GES15LR34ACH60 - Adaptor 15L-R3/4
Voss
€10.60

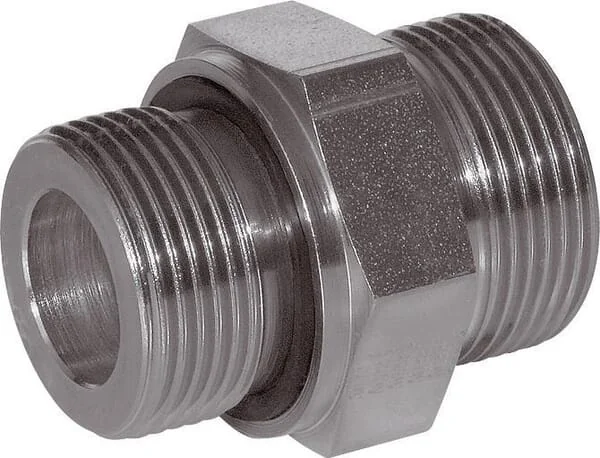

Voss - GES15LR34WD - Coupling 15L R3/4
Voss
€6.07

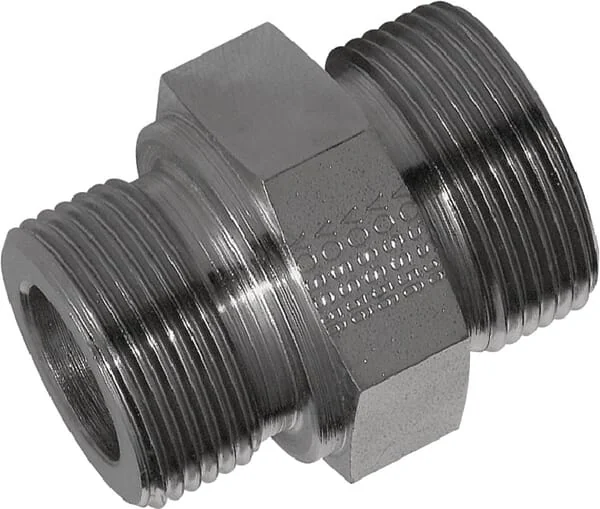

Voss - GES15LR38 - Cut Ring Coupling 15L M22x1,5 - BSP 3/8" - Male
