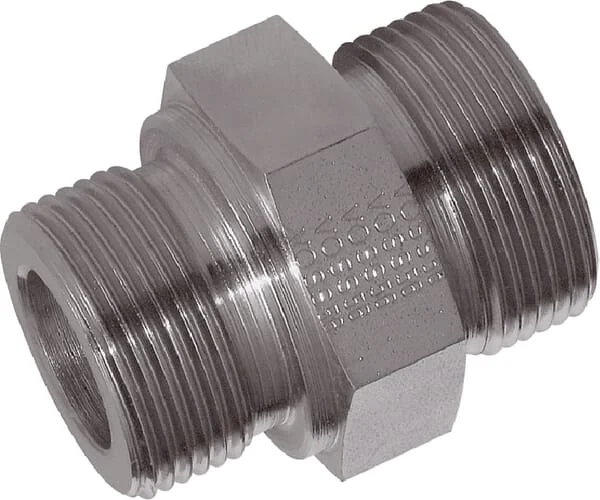

Voss - GES22LM26 - Coupling 22L M26

Voss - GES22LM26 - Coupling 22L M26

Voss - GES22LM26 - Coupling 22L M26

Voss - GES22LM26 - Coupling 22L M26

Voss - GES22LM26 - Coupling 22L M26

Voss - GES22LM26 - Coupling 22L M26

Number of products

In stock - ready to ship

Order now for delivery between 16 May and 20 May

Free shipping on orders over €60

Pay Securely with

Voss - GES22LM26 - Coupling 22L M26

Voss - GES22LM26 - Coupling 22L M26

€3.95

(Excl. VAT)

Price

(Excl. VAT)

€3.95

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Length

40 mm

Series

22L

DIN standard

2353 228 3852 2401

ISO standard

228

Pipe diameter

22 mm

Inside diameter

18 mm

Surface treatment

Zinc Nickel

Connection 2, type

Thread

Connection no 1 type

Cutting ring

Max working pressure

200 BAR

Max. tightening torque

230 N·m

Connection no 1 diameter

22 mm

Connection no 1 hex size

31 mm

Connection 2, thread type

Metric

Connection no 1 thread type

Metric

S2Connection 2, wrench size

36.0 mm

d1Connection 2, thread pitch

2.00 mm

S1Connection no 1 wrench size

32.0 mm

KConnection no 1 thread length

16 mm

d2Connection no 1 thread pitch

2.00 mm

d1Connection 2, thread diameter

M30

Connection 2, type - male/female

Male

d2Connection no 1 thread diameter

26 mm

Connection no 1 type - male/female

Male

L1Connection 2, centre to end distance

16,5 mm

L2Connection no 1 center to end distance

33 mm

Manufacturer

Voss

Similar items you might like

Voss - GES22LM26WD - Coupling 22L M26
Voss
€4.27
Voss - GES22LM27 - Coupling 22L M27x2
Voss
€19.38
Voss - GES22LR114ACH60 - Adaptor 22L-R1 1/4
Voss
€7.86

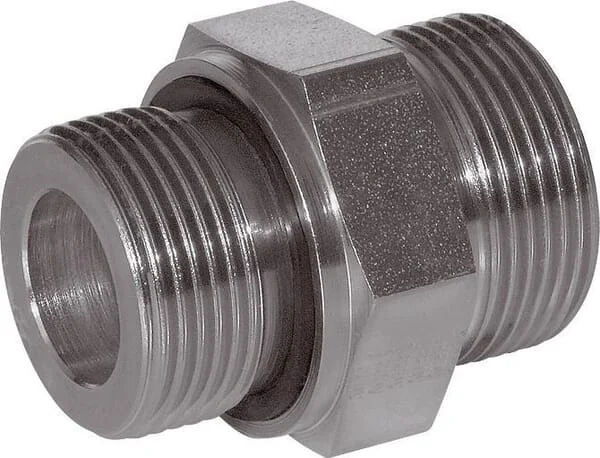

Voss - GES22LR114WD - Coupling 22L R1-1/4
Voss
€8.10
Voss - GES22LR12 - Cut Ring Coupling 22L M30x2,0 - BSP 1/2" - Male
Voss
€6.46
Voss - GES22LR12ACH60 - Adaptor 22L-R1/2
Voss
€5.60
Voss - GES22LR12WD - Coupling 22L R1/2
Voss
€6.69
Voss - GES22LR34 - Cut Ring Coupling 22L M30x2,0 - BSP 3/4" - Male
Voss
€3.95

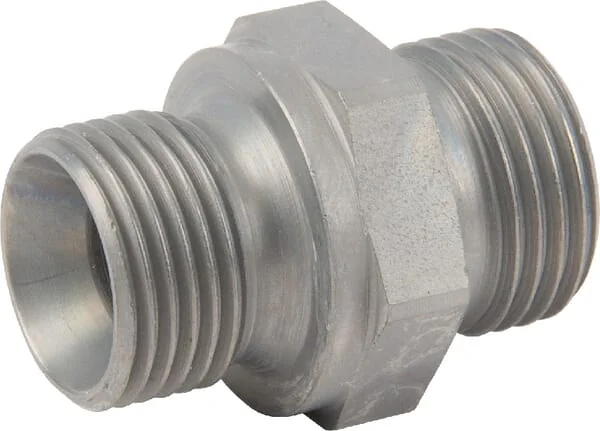

Voss - GES22LR34ACH60 - Adaptor 22L-R3/4
