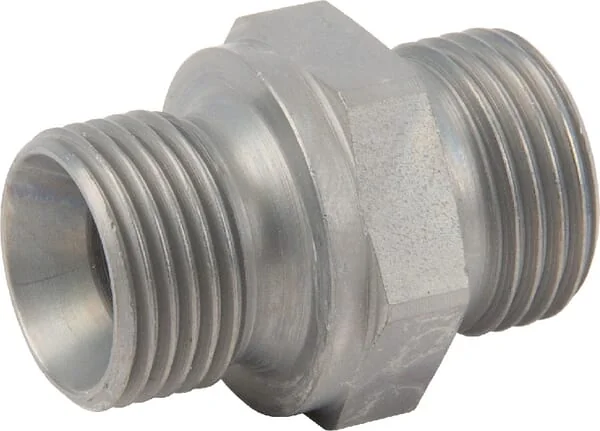

Voss - GES22LR34ACH60 - Adaptor 22L-R3/4

Voss - GES22LR34ACH60 - Adaptor 22L-R3/4

Voss - GES22LR34ACH60 - Adaptor 22L-R3/4

Voss - GES22LR34ACH60 - Adaptor 22L-R3/4

Number of products

In stock - ready to ship

Order now for delivery between 15 May and 19 May

Free shipping on orders over €60

Pay Securely with

Voss - GES22LR34ACH60 - Adaptor 22L-R3/4

Voss - GES22LR34ACH60 - Adaptor 22L-R3/4

€4.25

(Excl. VAT)

Price

(Excl. VAT)

€4.25

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Length

40 mm

DIN standard

2401

Pipe diameter

22 mm

Inside diameter

18 mm

Outside diameter

32 mm

Surface treatment

Zinc, Nickel-plated

Connection 2, type

Cutting ring

Connection no 1 type

Cutting ring

Max working pressure

160 BAR

Max. tightening torque

220 N·m

Connection no 1 diameter

22 mm

Connection 2, thread type

BSPP

Connection 2, wrench size

32.0 mm

Connection no 1 thread type

BSPP

Connection no 1 thread pitch

2.00 mm

Connection 2, thread diameter

3/4 Inch

Connection no 1 thread length

16 mm

Connection 2, threads per inch

14

Connection no 1 thread diameter

M30

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Male

Manufacturer

Voss
