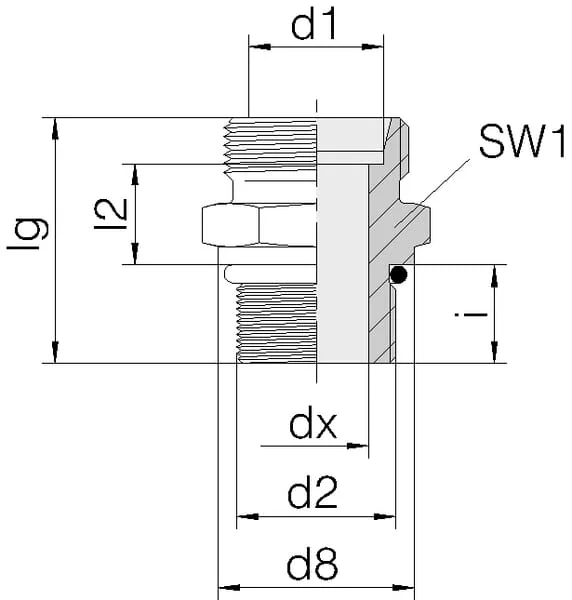

Voss - GES25S1516UNF - Coupling 25S 1-5/16UNF

Voss - GES25S1516UNF - Coupling 25S 1-5/16UNF

Voss - GES25S1516UNF - Coupling 25S 1-5/16UNF

Voss - GES25S1516UNF - Coupling 25S 1-5/16UNF

Voss - GES25S1516UNF - Coupling 25S 1-5/16UNF

Voss - GES25S1516UNF - Coupling 25S 1-5/16UNF

Number of products

In stock - ready to ship

Order now for delivery between 25 May and 28 May

Free shipping on orders over €60

Pay Securely with

Voss - GES25S1516UNF - Coupling 25S 1-5/16UNF

Voss - GES25S1516UNF - Coupling 25S 1-5/16UNF

€17.21

(Excl. VAT)

Price

(Excl. VAT)

€17.21

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Length

50 mm

Series

S

DIN standard

2353 3852 2401

SAE standard

514

Pipe diameter

25 mm

Seal material

Nitrile rubber [NBR]

Inside diameter

20 mm

Surface treatment

Zinc Nickel

Connection 2, type

Seal ring

Connection no 1 type

Cutting ring

Max working pressure

420 BAR

Max. tightening torque

430 N·m

Connection no 1 diameter

25 mm

Connection no 1 hex size

38,1 mm

Connection 2, thread type

UNF

Connection no 1 thread type

UNF

S2Connection 2, wrench size

46.0 mm

Connection no 1 thread pitch

2.00 mm

Connection 2, thread diameter

1-5/16 Inch

S1Connection no 1 wrench size

41.0 mm

Connection 2, threads per inch

12

KConnection no 1 thread length

15 mm

Connection no 1 thread diameter

M36

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Male

L1Connection 2, centre to end distance

23 mm

L2Connection no 1 center to end distance

47 mm

Manufacturer

Voss
