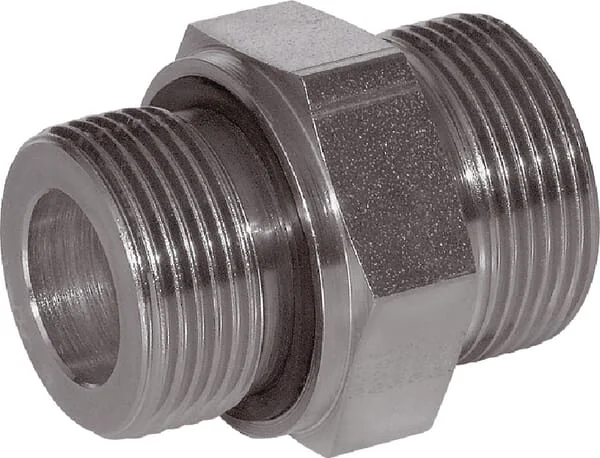

Voss - GES25SM33WD - Coupling 25s M33

Voss - GES25SM33WD - Coupling 25s M33

Voss - GES25SM33WD - Coupling 25s M33

Voss - GES25SM33WD - Coupling 25s M33

Number of products

In stock - ready to ship

Order now for delivery between 16 May and 20 May

Free shipping on orders over €60

Pay Securely with

Voss - GES25SM33WD - Coupling 25s M33

Voss - GES25SM33WD - Coupling 25s M33

€6.42

(Excl. VAT)

Price

(Excl. VAT)

€6.42

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Series

25S

lgLength

53 mm

DIN standard

2353 228 3852 2401

ISO standard

228

Seal material

Nitrile rubber [NBR]

d1Pipe diameter

25 mm

Surface treatment

Zinc Nickel

dxInside diameter

20 mm

Connection 2, type

Seal ring

Connection no 1 type

Cutting ring

Max working pressure

420 BAR

Max. tightening torque

250 N·m

Connection no 1 diameter

25 mm

Connection 2, thread type

Metric

Connection 2, thread pitch

2.00 mm

d7Connection no 1 hex size

39,9 mm

Connection no 1 thread type

Metric

S2Connection 2, wrench size

46.0 mm

Connection no 1 thread pitch

2.00 mm

SW1Connection no 1 wrench size

41.0 mm

iConnection no 1 thread length

18 mm

Connection no 1 thread diameter

33 mm

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Male

L1Connection 2, centre to end distance

23 mm

L2Connection no 1 center to end distance

47 mm

Manufacturer

Voss
