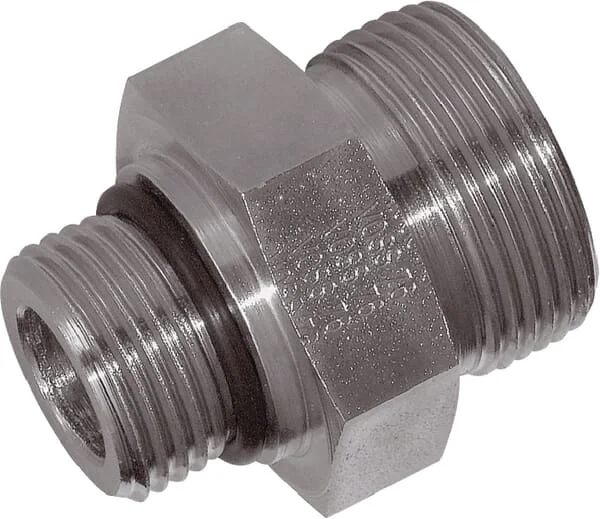

Voss - GES28L158UNF - Adaptor 28l 1 5/8 UNF

Voss - GES28L158UNF - Adaptor 28l 1 5/8 UNF

Voss - GES28L158UNF - Adaptor 28l 1 5/8 UNF

Voss - GES28L158UNF - Adaptor 28l 1 5/8 UNF

Number of products

In stock - ready to ship

Ships within 48 hours

Free shipping on orders over €60

Pay Securely with

Voss - GES28L158UNF - Adaptor 28l 1 5/8 UNF

Voss - GES28L158UNF - Adaptor 28l 1 5/8 UNF

€20.24

(Excl. VAT)

Price

(Excl. VAT)

€20.24

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Length

40 mm

Series

L

DIN standard

2353 3852 2401

SAE standard

514

Pipe diameter

28 mm

Seal material

Nitrile rubber [NBR]

Inside diameter

24 mm

Surface treatment

Zinc Nickel

Connection 2, type

Seal ring

Connection no 1 type

Cutting ring

Max working pressure

250 BAR

Max. tightening torque

220 N·m

Connection no 1 diameter

28 mm

Connection no 1 hex size

48 mm

Connection 2, thread type

UNF

Connection no 1 thread type

UN

S2Connection 2, wrench size

50.0 mm

Connection no 1 thread pitch

2.00 mm

Connection 2, thread diameter

1-5/8 Inch

S1Connection no 1 wrench size

41.0 mm

Connection 2, threads per inch

12

KConnection no 1 thread length

15 mm

Connection no 1 thread diameter

M36

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Male

Manufacturer

Voss
