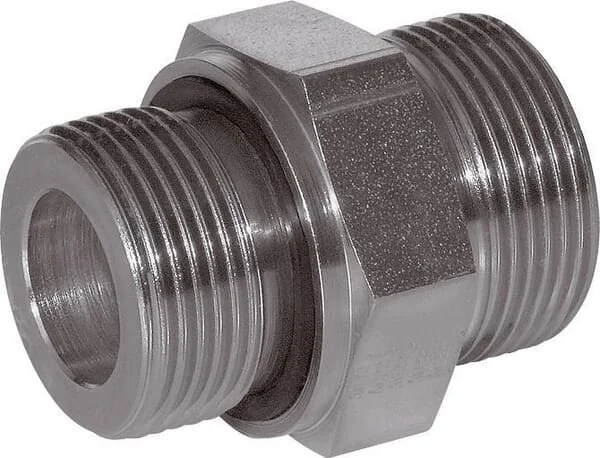

Voss - GES28LR1WD - Coupling 28l R1

Voss - GES28LR1WD - Coupling 28l R1

Voss - GES28LR1WD - Coupling 28l R1

Voss - GES28LR1WD - Coupling 28l R1

Voss - GES28LR1WD - Coupling 28l R1

Voss - GES28LR1WD - Coupling 28l R1

Number of products

In stock - ready to ship

Order now for delivery between 16 May and 20 May

Free shipping on orders over €60

Pay Securely with

Voss - GES28LR1WD - Coupling 28l R1

Voss - GES28LR1WD - Coupling 28l R1

€6.56

(Excl. VAT)

Price

(Excl. VAT)

€6.56

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Series

28L

lgLength

43 mm

DIN standard

2353 228 3852 2401

ISO standard

228

Seal material

Nitrile rubber [NBR]

d1Pipe diameter

28 mm

Surface treatment

Zinc Nickel

dxInside diameter

23 mm

Connection 2, type

Seal ring

Connection no 1 type

Cutting ring

Max working pressure

250 BAR

Max. tightening torque

230 N·m

Connection 2, thread type

BSP

GConnection no 1 diameter

28 mm

d7Connection no 1 hex size

39,9 mm

S2Connection 2, wrench size

41.0 mm

GConnection no 1 thread type

BSP

GConnection no 1 thread pitch

2.00 mm

Connection 2, threads per inch

11

SW1Connection no 1 wrench size

41.0 mm

iConnection no 1 thread length

18 mm

d2Connection 2, thread diameter

1 Inch

Connection 2, type - male/female

Male

GConnection no 1 thread diameter

M36

Connection no 1 type - male/female

Male

LConnection 2, centre to end distance

17,5 mm

L2Connection no 1 center to end distance

34 mm

Manufacturer

Voss

Similar items you might like

Voss - GES28LR34 - Cut Ring Coupling 28l M36x2.0 - BSP 3/4 - Male
Voss
€9.04
Voss - GES28LR34ACH60 - Adaptor 28l-R3/4
Voss
€8.02
Voss - GES30S1116UNF - Adaptor 30s 1 1/16 UNF
Voss
€21.94
Voss - GES30S1516UNF - Coupling 30s 15/16UNF
Voss
€19.20

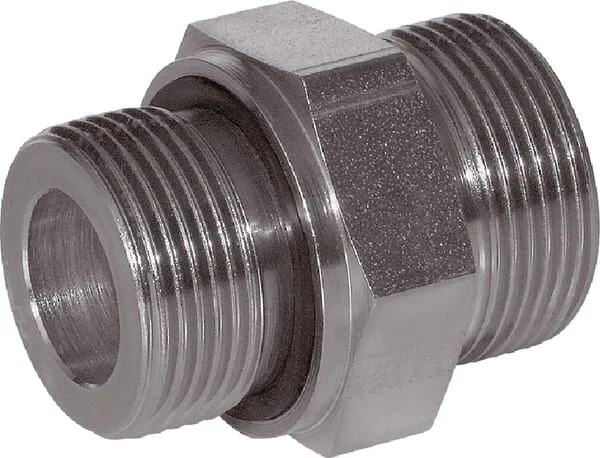

Voss - GES30SM42WD - Coupling 30s M42
