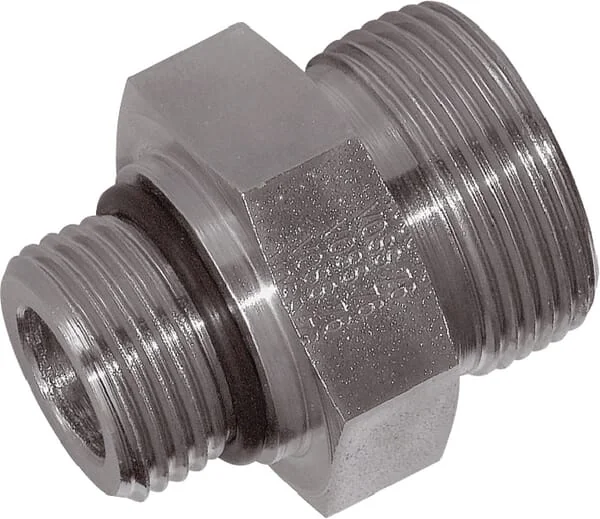

Voss - GES30SR1WD - Coupling 30s R1

Voss - GES30SR1WD - Coupling 30s R1

Voss - GES30SR1WD - Coupling 30s R1

Voss - GES30SR1WD - Coupling 30s R1

Voss - GES30SR1WD - Coupling 30s R1

Voss - GES30SR1WD - Coupling 30s R1

Number of products

In stock - ready to ship

Order now for delivery between 19 May and 22 May

Free shipping on orders over €60

Pay Securely with

Voss - GES30SR1WD - Coupling 30s R1

Voss - GES30SR1WD - Coupling 30s R1

€11.62

(Excl. VAT)

Price

(Excl. VAT)

€11.62

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Series

30S

lgLength

55 mm

DIN standard

2353 228 3852 2401

ISO standard

228

Seal material

Nitrile rubber [NBR]

d1Pipe diameter

30 mm

Surface treatment

Zinc Nickel

dxInside diameter

20 mm

Connection 2, type

Seal ring

Connection no 1 type

Cutting ring

Max working pressure

420 BAR

Max. tightening torque

250 N·m

Connection 2, thread type

BSP

GConnection no 1 diameter

30 mm

d7Connection no 1 hex size

39,9 mm

S2Connection 2, wrench size

50.0 mm

GConnection no 1 thread type

BSP

GConnection no 1 thread pitch

2.00 mm

Connection 2, threads per inch

11

SW1Connection no 1 wrench size

46.0 mm

iConnection no 1 thread length

23,5 mm

d2Connection 2, thread diameter

1 Inch

Connection 2, type - male/female

Male

GConnection no 1 thread diameter

M42

Connection no 1 type - male/female

Male

Manufacturer

Voss
