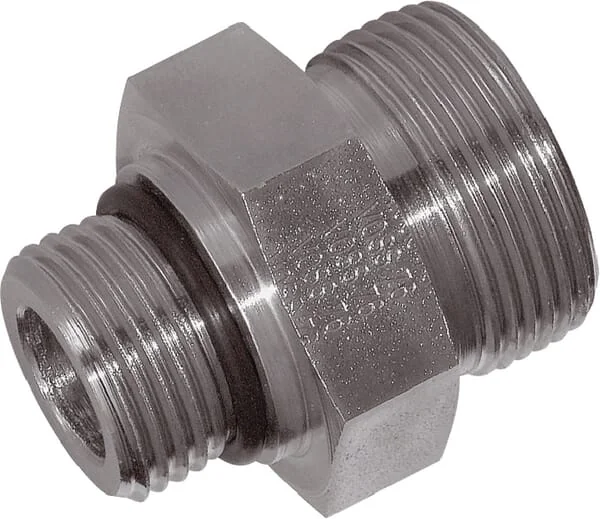

Voss - GES30S1516UNF - Coupling 30s 15/16UNF

Voss - GES30S1516UNF - Coupling 30s 15/16UNF

Voss - GES30S1516UNF - Coupling 30s 15/16UNF

Voss - GES30S1516UNF - Coupling 30s 15/16UNF

Voss - GES30S1516UNF - Coupling 30s 15/16UNF

Voss - GES30S1516UNF - Coupling 30s 15/16UNF

Number of products

In stock - ready to ship

Order now for delivery between 18 May and 21 May

Free shipping on orders over €60

Pay Securely with

Voss - GES30S1516UNF - Coupling 30s 15/16UNF

Voss - GES30S1516UNF - Coupling 30s 15/16UNF

€19.08

(Excl. VAT)

Price

(Excl. VAT)

€19.08

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Length

52 mm

Series

S

DIN standard

2353 3852 2401

SAE standard

514

Pipe diameter

30 mm

Seal material

Nitrile rubber [NBR]

Inside diameter

22 mm

Surface treatment

Zinc Nickel

Connection 2, type

Seal ring

Connection no 1 type

Cutting ring

Max working pressure

420 BAR

Max. tightening torque

430 N·m

Connection no 1 diameter

30 mm

Connection no 1 hex size

38,1 mm

Connection 2, thread type

UNF

Connection no 1 thread type

UNF

S2Connection 2, wrench size

50.0 mm

Connection no 1 thread pitch

2.00 mm

Connection 2, thread diameter

1-5/16 Inch

S1Connection no 1 wrench size

50.0 mm

Connection 2, threads per inch

12

KConnection no 1 thread length

15 mm

Connection no 1 thread diameter

M42

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Male

L1Connection 2, centre to end distance

23,5 mm

L2Connection no 1 center to end distance

50 mm

Manufacturer

Voss
