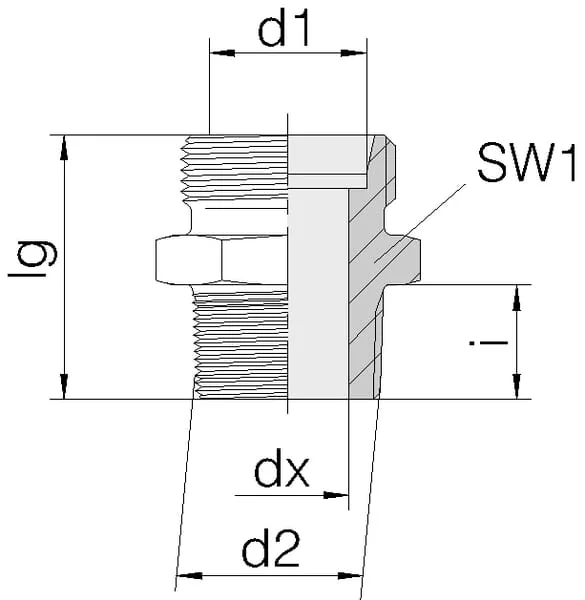

Voss - GES28L1NPT - Coupling 28l 1NPT

Voss - GES28L1NPT - Coupling 28l 1NPT

Voss - GES28L1NPT - Coupling 28l 1NPT

Voss - GES28L1NPT - Coupling 28l 1NPT

Voss - GES28L1NPT - Coupling 28l 1NPT

Voss - GES28L1NPT - Coupling 28l 1NPT

Number of products

In stock - ready to ship

Order now for delivery between 18 May and 21 May

Free shipping on orders over €60

Pay Securely with

Voss - GES28L1NPT - Coupling 28l 1NPT

Voss - GES28L1NPT - Coupling 28l 1NPT

€6.11

(Excl. VAT)

Price

(Excl. VAT)

€6.11

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Unit

Each

Shape

Straight - 2 connection sides

Length

47 mm

Series

L

DIN standard

2353

ANSI standard

B1.20.1-1983.

ASME standard

B1.20.1-1983.

Pipe diameter

28 mm

Inside diameter

28 mm

Surface treatment

Zinc Nickel

Connection 2, type

Thread

Connection no 1 type

Cutting ring

Max working pressure

160 BAR

Max. tightening torque

265 N·m

Connection no 1 diameter

28 mm

Connection 2, thread type

NPT

Connection no 1 thread type

NPT

S2Connection 2, wrench size

41.0 mm

Connection no 1 thread pitch

2.00 mm

Connection 2, thread diameter

1 Inch

S1Connection no 1 wrench size

41.0 mm

KConnection no 1 thread length

17,3 mm

Connection no 1 thread diameter

M36

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Male

Manufacturer

Voss
