VOSS - GES25SR34WD - Coupling 25S R3/4

OEM Quality

SKU: voss-ges25sr34wd

VOSS - GES25SR34WD - Coupling 25S R3/4

€10.09

(excl. VAT)

In stock - ready to ship

Ships within 96 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€10.09

Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose Hydraulic pipes - Do not use for 4-layer hose HDR (4SP)
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Brand
Voss
Part Numbers
ges25sr34wd
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Series
25S
lgLength
51 mm
DIN standard
2353 228 3852 2401
ISO standard
228
Seal material
Nitrile rubber [NBR]
Product details
Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose Hydraulic pipes - Do not use for 4-layer hose HDR (4SP)

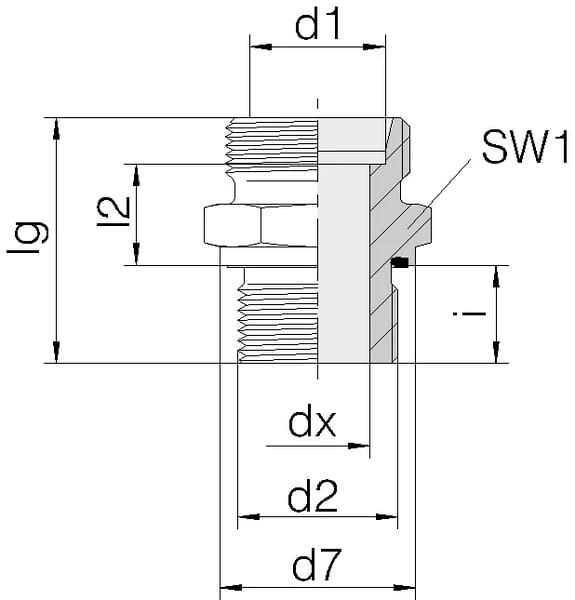

d1Pipe diameter
25 mm
Surface treatment
Zinc Nickel
dxInside diameter
16 mm
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
420 BAR
Max. tightening torque
200 N·m
Connection 2, thread type
BSP
GConnection no 1 diameter
25 mm
d7Connection no 1 hex size
31,9 mm
S2Connection 2, wrench size
46.0 mm
GConnection no 1 thread type
BSP
GConnection no 1 thread pitch
2.00 mm
Connection 2, threads per inch
14
SW1Connection no 1 wrench size
41.0 mm
iConnection no 1 thread length
16 mm
d2Connection 2, thread diameter
3/4 Inch
Connection 2, type - male/female
Male
GConnection no 1 thread diameter
M36
Connection no 1 type - male/female
Male
LConnection 2, centre to end distance
23 mm
L2Connection no 1 center to end distance
47 mm
EAN
8716106949168
Manufacturer
Voss
