Voss - GES8LM14WD - Coupling 8L M14

Voss - GES8LM14WD - Coupling 8L M14

Voss - GES8LM14WD - Coupling 8L M14

Voss - GES8LM14WD - Coupling 8L M14

Number of products

In stock - ready to ship

Order now for delivery between 16 May and 20 May

Free shipping on orders over €60

Pay Securely with

Voss - GES8LM14WD - Coupling 8L M14

Voss - GES8LM14WD - Coupling 8L M14

€3.18

(Excl. VAT)

Price

(Excl. VAT)

€3.18

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

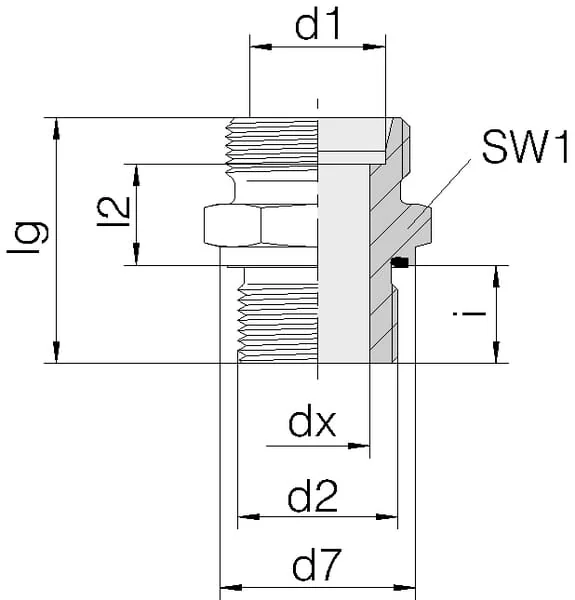

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Series

8L

lgLength

29 mm

DIN standard

2353 228 3852 2401

ISO standard

228

Seal material

Nitrile rubber [NBR]

d1Pipe diameter

8 mm

Surface treatment

Zinc Nickel

dxInside diameter

6 mm

Connection 2, type

Seal ring

Connection no 1 type

Cutting ring

Max working pressure

500 BAR

Max. tightening torque

50 N·m

Connection no 1 diameter

8 mm

Connection 2, thread type

Metric

Connection 2, thread pitch

1.50 mm

d7Connection no 1 hex size

18,9 mm

Connection no 1 thread type

Metric

S2Connection 2, wrench size

17.0 mm

Connection no 1 thread pitch

1.50 mm

Connection 2, thread diameter

M14

SW1Connection no 1 wrench size

19.0 mm

iConnection no 1 thread length

12 mm

Connection no 1 thread diameter

14 mm

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Male

L1Connection 2, centre to end distance

10 mm

L2Connection no 1 center to end distance

25 mm

Manufacturer

Voss
