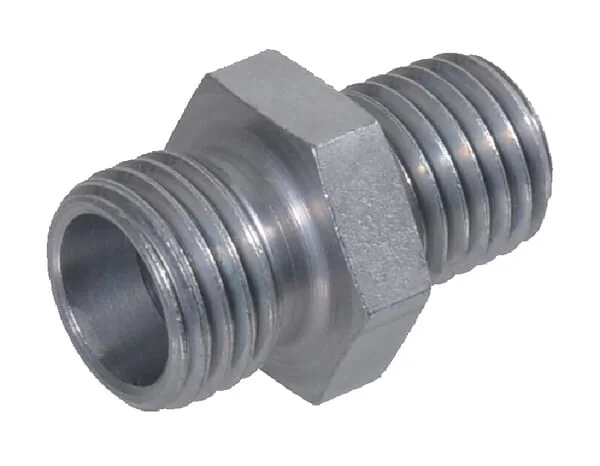

Voss - GES8LMK12 - Coupling 8L M12

Voss - GES8LMK12 - Coupling 8L M12

Voss - GES8LMK12 - Coupling 8L M12

Voss - GES8LMK12 - Coupling 8L M12

Voss - GES8LMK12 - Coupling 8L M12

Voss - GES8LMK12 - Coupling 8L M12

Number of products

In stock - ready to ship

Order now for delivery between 16 May and 20 May

Free shipping on orders over €60

Pay Securely with

Voss - GES8LMK12 - Coupling 8L M12

Voss - GES8LMK12 - Coupling 8L M12

€3.40

(Excl. VAT)

Price

(Excl. VAT)

€3.40

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Length

27 mm

Series

L

DIN standard

2353 158 3852

ISO standard

158

Pipe diameter

8 mm

Inside diameter

6 mm

Surface treatment

Zinc Nickel

Connection 2, type

Thread

Connection no 1 type

Cutting ring

Max working pressure

315 BAR

Connection no 1 diameter

8 mm

Connection 2, thread type

Metric

Connection 2, thread pitch

1.50 mm

Connection no 1 thread type

Metric

S2Connection 2, wrench size

17.0 mm

Connection no 1 thread pitch

1.50 mm

Connection 2, thread diameter

M12

S1Connection no 1 wrench size

17.0 mm

KConnection no 1 thread length

9 mm

Connection no 1 thread diameter

12 mm

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Male

L2Connection 2, centre to end distance

12 mm

L1Connection no 1 center to end distance

12 mm

Manufacturer

Voss
