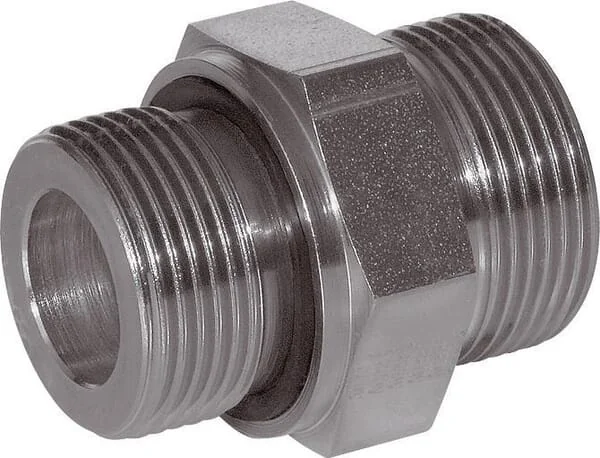

Voss - GES8LR18WD - Adaptor 8L 1/8 BSP

Voss - GES8LR18WD - Adaptor 8L 1/8 BSP

Voss - GES8LR18WD - Adaptor 8L 1/8 BSP

Voss - GES8LR18WD - Adaptor 8L 1/8 BSP

Number of products

In stock - ready to ship

Order now for delivery between 16 May and 20 May

Free shipping on orders over €60

Pay Securely with

Voss - GES8LR18WD - Adaptor 8L 1/8 BSP

Voss - GES8LR18WD - Adaptor 8L 1/8 BSP

€3.37

(Excl. VAT)

Price

(Excl. VAT)

€3.37

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

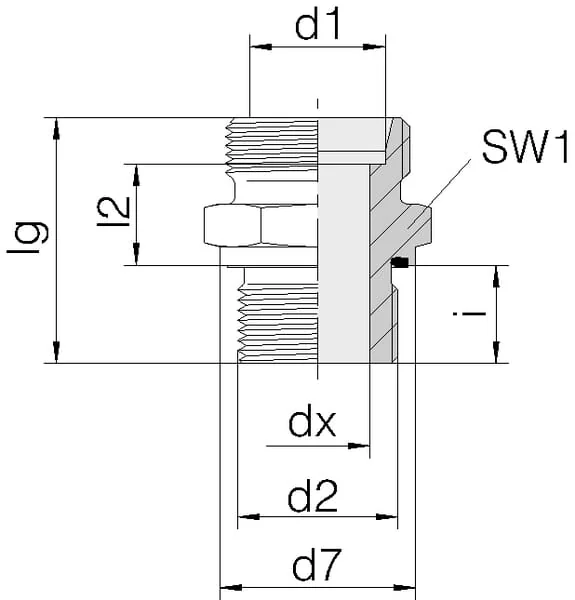

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Series

8L

lgLength

24,5 mm

DIN standard

2353 228 3852 2401

ISO standard

228

Seal material

Nitrile rubber [NBR]

d1Pipe diameter

8 mm

Surface treatment

Zinc Nickel

dxInside diameter

4 mm

Connection 2, type

Seal ring

Connection no 1 type

Cutting ring

Max working pressure

500 BAR

Max. tightening torque

20 N·m

Connection no 1 diameter

8 mm

Connection 2, thread type

BSP

Connection 2, wrench size

14.0 mm

d7Connection no 1 hex size

13,9 mm

Connection no 1 thread type

BSP

Connection no 1 thread pitch

1.50 mm

Connection 2, threads per inch

28

SW1Connection no 1 wrench size

17.0 mm

iConnection no 1 thread length

8 mm

Connection no 1 thread diameter

M14

d2Connection 2, thread diameter

1/8 Inch

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Male

Manufacturer

Voss
