Voss - GES8SR14WD - Coupling 8S R1/4

Voss - GES8SR14WD - Coupling 8S R1/4

Voss - GES8SR14WD - Coupling 8S R1/4

Voss - GES8SR14WD - Coupling 8S R1/4

Voss - GES8SR14WD - Coupling 8S R1/4

Voss - GES8SR14WD - Coupling 8S R1/4

Number of products

In stock - ready to ship

Order now for delivery between 16 May and 20 May

Free shipping on orders over €60

Pay Securely with

Voss - GES8SR14WD - Coupling 8S R1/4

Voss - GES8SR14WD - Coupling 8S R1/4

€2.93

(Excl. VAT)

Price

(Excl. VAT)

€2.93

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

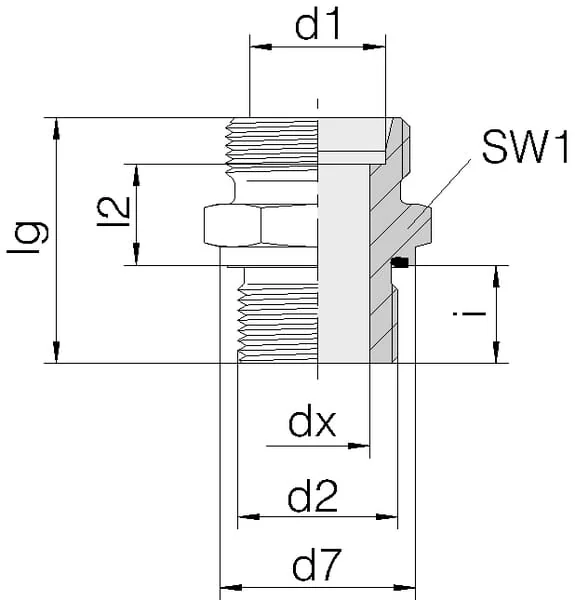

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Series

8S

lgLength

34 mm

DIN standard

2353 228 3852 2401

ISO standard

228

Seal material

Nitrile rubber [NBR]

d1Pipe diameter

8 mm

Surface treatment

Zinc Nickel

dxInside diameter

5 mm

Connection 2, type

Seal ring

Connection no 1 type

Cutting ring

Max working pressure

800 BAR

Max. tightening torque

60 N·m

Connection 2, thread type

BSP

GConnection no 1 diameter

8 mm

d7Connection no 1 hex size

18,9 mm

S2Connection 2, wrench size

19.0 mm

GConnection no 1 thread type

BSP

GConnection no 1 thread pitch

1.50 mm

Connection 2, threads per inch

19

SW1Connection no 1 wrench size

19.0 mm

iConnection no 1 thread length

12 mm

d2Connection 2, thread diameter

1/4 Inch

Connection 2, type - male/female

Male

GConnection no 1 thread diameter

M16

Connection no 1 type - male/female

Male

LConnection 2, centre to end distance

15 mm

L2Connection no 1 center to end distance

30 mm

Manufacturer

Voss

Similar items you might like

Voss - GES8SR38 - Cut Ring Coupling 08S M16x1,5 - BSP 3/8" - Male
Voss
€4.27
Voss - GES8SR38ACH60 - Adaptor 8S-R3/8
Voss
€7.47
Voss - GES8SR38WD - Adaptor 8S R3/8 WD
Voss
€4.50
Voss - GESS12LR12 - Bulkhead Loose 12L R1/2
Voss
€6.63
Voss - GESS15LR12 - Bulkhead Loose 15L R1/2
Voss
€7.43
Voss - GESV10LR38 - Bulkhead Coupling 10L R3/8
Voss
€10.24

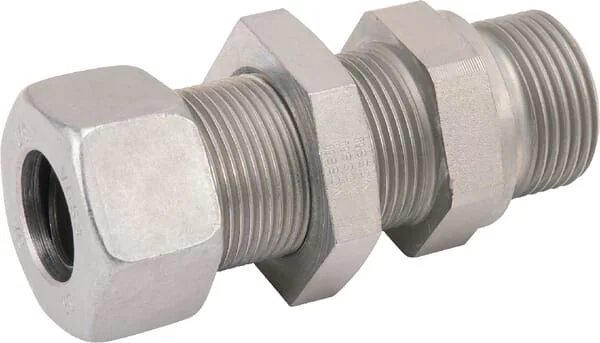

Voss - GESV15LR12 - Bulkhead Coupling 15L R1/2
