Voss - KV15L - Cross Coupling 15L
Voss - KV15L - Cross Coupling 15L
Voss - KV15L - Cross Coupling 15L
Voss - KV15L - Cross Coupling 15L

In stock - ready to ship

Order now for delivery between 15 May and 19 May
Free shipping on orders over €60

Pay Securely with

Voss - KV15L - Cross Coupling 15L

Voss - KV15L - Cross Coupling 15L

€17.37

(Excl. VAT)

Price

(Excl. VAT)

€17.37

Product Description

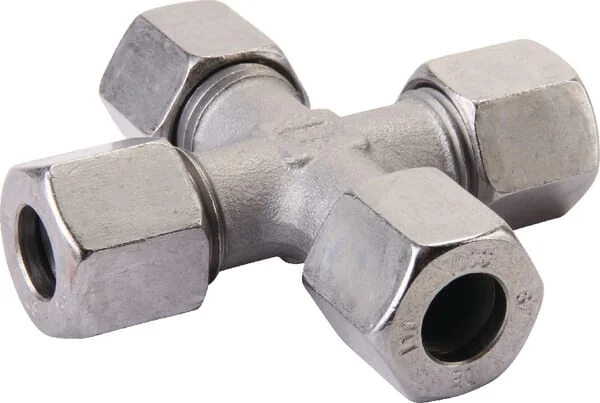

The VOSSForm 10° KV15L cross coupling is a genuine VOSS component engineered for connecting 15mm outer diameter hydraulic tubing within light series (L) applications. Constructed from robust steel, this coupling guarantees reliable, high-pressure connections, capable of withstanding up to 250 bar. It integrates the advanced VOSSForm 10° connection technology, ensuring a secure and leak-free seal essential for demanding hydraulic systems.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
2S cutting ring
Unit
Each
Shape
Cross - 4 connection sides
Includes
Coupling Cutting rings Gland nuts
DIN standard
2353 2401

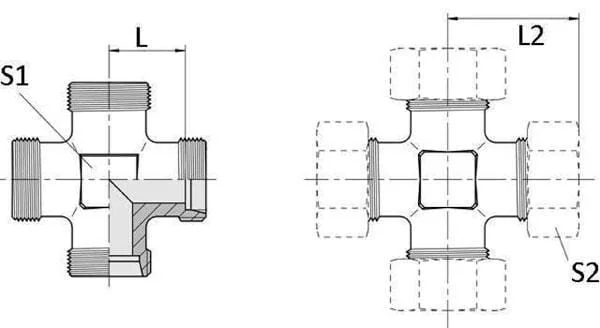

S1Body height
19 mm
Inside diameter
15 mm
Product details
2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance - Hydraulic hose Hydraulic pipes
Surface treatment
Zinc Nickel-plated
Connection 2, type
Cutting ring
Connection 3, type
Cutting ring
Connection 4, type
Cutting ring
Connection no 1 type
Cutting ring
Max working pressure
315 BAR
Connection 2, diameter
15 mm
Connection 3, diameter
15 mm
Connection 4, diameter
15 mm
Connection no 1 diameter
15 mm
Connection 2, thread type
Metric
Connection 3, thread type
Metric
Connection 4, thread type
Metric
Connection 2, thread pitch
1.50 mm
Connection 3, thread pitch
1.50 mm
Connection 4, thread pitch
1.50 mm
Connection no 1 thread type
Metric
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
M22
Connection 3, thread diameter
M22
Connection 4, thread diameter
M22
S1Connection no 1 wrench size
27.0 mm
Connection no 1 thread diameter
M22
Connection 2, type - male/female
Female
Connection 3, type - male/female
Female
Connection 4, type - male/female
Female
Connection no 1 type - male/female
Female
L2Connection no 1 center to end distance
36 mm
Manufacturer
Voss
