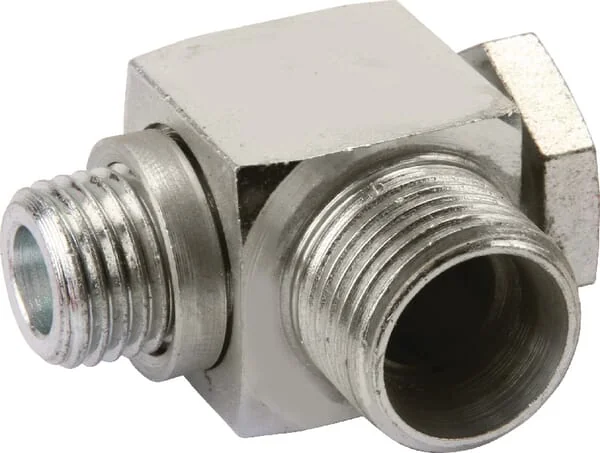

VOSS - RSWS18LM22WD - Right-Angle Swivel Coupling

OEM Quality

SKU: voss-rsws18lm22wd

VOSS - RSWS18LM22WD - Right-Angle Swivel Coupling

€15.79

(excl. VAT)

In stock - ready to ship

Ships within 96 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€15.79

Multiple corrosion resistance Adjustable direction The adjusted direction is fixed by lock nut Hydraulic hose Hydraulic pipes Available in stainless steel on request
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Brand
Voss
Part Numbers
rsws18lm22wd
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
LL L S
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
18 mm
Seal material
Metal Synthetic elastomer
Inside diameter
11 mm15 mm
Product details
Multiple corrosion resistance Adjustable direction The adjusted direction is fixed by lock nut Hydraulic hose Hydraulic pipes Available in stainless steel on request
Surface treatment
Zinc Nickel
Connection 2, type
Cutting ring
Connection 2, length
43 mm
Connection no 1 type
Banjo
Max working pressure
400 BAR
Connection 2, diameter
18 mm
Max. tightening torque
140 N·m
Connection no 1 hex size
27,9 mm
Connection 2, thread type
Metric
Connection 2, wrench size
30.0 mm
Connection 2, thread pitch
1.50 mm
Connection no 1 thread type
Metric
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
M26

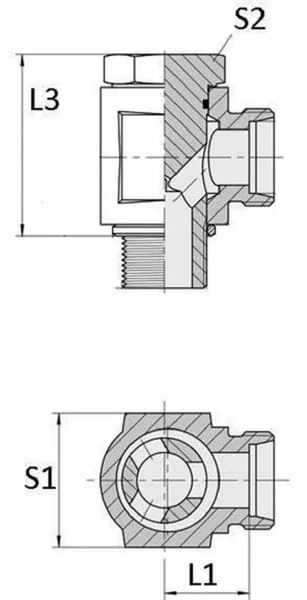

S2Connection no 1 wrench size
27.0 mm
Connection no 1 thread diameter
22 mm
L1Connection no 1 thread length
14 mm
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
21,5 mm
Connection no 1 center to end distance
28 mm
Manufacturer
Voss
