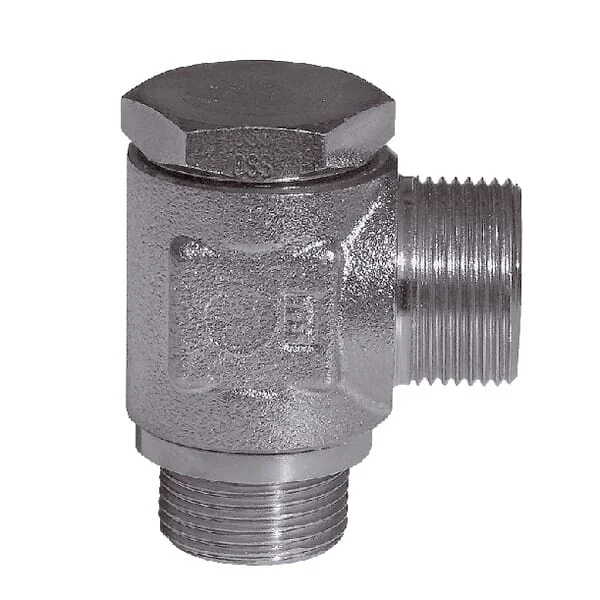

VOSS - RSWS6LR18WD - Swivel Coupling 6L R1/8

OEM Quality

SKU: voss-rsws6lr18wd

VOSS - RSWS6LR18WD - Swivel Coupling 6L R1/8

€8.28

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€8.28

Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Brand
Voss
Part Numbers
rsws6lr18wd
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
L
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
6 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
4 mm
Product details
Multiple corrosion resistance Adjustable direction The adjusted direction is fixed by lock nut
Surface treatment
Zinc Nickel
Connection 2, type
Banjo
Connection 2, length
21 mm
Connection no 1 type
Cutting ring
Max working pressure
500 BAR
Max. tightening torque
25 N·m
Connection no 1 diameter
6 mm
Connection no 1 hex size
14,9 mm
Connection 2, thread type
BSP
Connection 2, wrench size
14.0 mm
Connection no 1 thread type
BSP
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
1/8 Inch
S3Connection no 1 wrench size
14.0 mm
Connection 2, threads per inch
28
Connection no 1 thread diameter
M12
L1Connection no 1 thread length
8 mm
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
10 mm
Connection no 1 center to end distance
27,5 mm
Manufacturer
Voss
