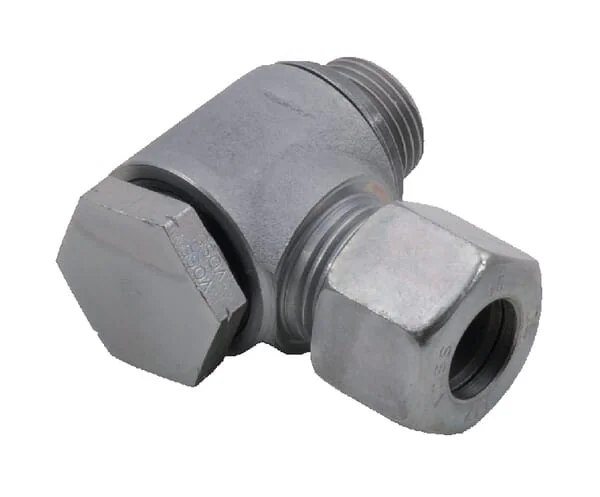

Voss - RSWV6LR18WD - Coupling
Voss - RSWV6LR18WD - Coupling
Voss - RSWV6LR18WD - Coupling
Voss - RSWV6LR18WD - Coupling

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping on orders over €60

Pay Securely with

Voss - RSWV6LR18WD - Coupling

Voss - RSWV6LR18WD - Coupling

€8.21

(Excl. VAT)

Price

(Excl. VAT)

€8.21

Product Description

The VOSS RSWV6LR18WD is a high-quality, genuine VOSS Fluid swivel coupling from the RSW series, engineered for robust and flexible hydraulic connections. This specific model features a V6 connection type and is designed for LR18 (Light Duty 18mm) tube outer diameter connections. Manufactured from durable steel with a protective zinc-nickel coating, it ensures reliable, leak-free operation and corrosion resistance in demanding industrial and mobile hydraulic systems. It is rated for a maximum operating pressure of 250 bar and a temperature range of -40 °C to +120 °C.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
LL L S
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
6 mm
Seal material
Metal Synthetic elastomer
Product details
2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance Adjustable direction The adjusted direction is fixed by lock nut Hydraulic hose Hydraulic pipes
Surface treatment
Zinc Nickel
Connection 2, type
Banjo
Connection no 1 type
Cutting ring
Max working pressure
500 BAR
Connection no 1 diameter
6 mm
Connection 2, thread type
BSP
Connection no 1 thread type
BSP
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
1/8 Inch
S3Connection no 1 wrench size
14.0 mm
Connection 2, threads per inch
28
Connection no 1 thread diameter
M12
L1Connection no 1 thread length
8 mm
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Connection no 1 center to end distance
27,5 mm
Manufacturer
Voss
