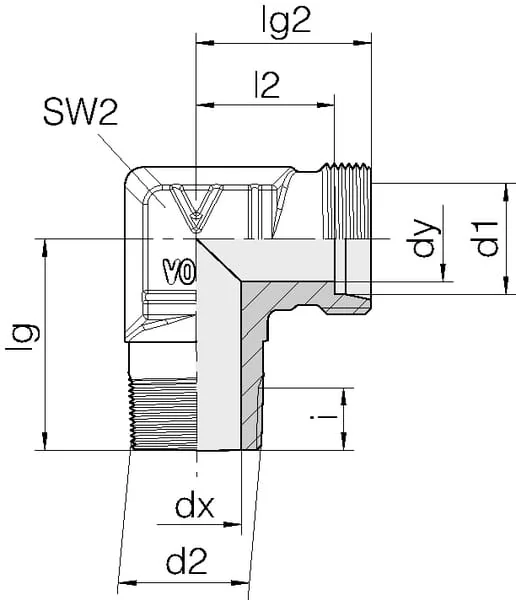

Voss - WES12L12NPT - Angled Screw Connection

Voss - WES12L12NPT - Angled Screw Connection

Voss - WES12L12NPT - Angled Screw Connection

Voss - WES12L12NPT - Angled Screw Connection

Voss - WES12L12NPT - Angled Screw Connection

Voss - WES12L12NPT - Angled Screw Connection

Number of products

In stock - ready to ship

Order now for delivery between 18 May and 21 May

Free shipping on orders over €60

Pay Securely with

Voss - WES12L12NPT - Angled Screw Connection

Voss - WES12L12NPT - Angled Screw Connection

€8.29

(Excl. VAT)

Price

(Excl. VAT)

€8.29

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Unit

Each

Angle

90 °

Shape

Elbow - 2 connection sides

Series

L

Includes

without separate nut and cutting ring

Body height

24 mm

DIN standard

2353 228 3852 2401

ISO standard

228

Pipe diameter

12 mm

Inside diameter

12 mm9 mm

Surface treatment

Galvanised

Max working pressure

315 BAR

Connection 2, diameter

12 mm

Max. tightening torque

110 N·m

Connection 2, thread type

Metric

Connection 2, wrench size

24.0 mm

Connection 2, thread pitch

1.50 mm

Connection no 1 thread type

NPT

Connection 2, thread diameter

M18

S2Connection no 1 wrench size

22.0 mm

Connection no 1 thread diameter

1/2 Inch

L1Connection no 1 thread length

19,8 mm

Connection 2, type - male/female

Female

Connection 2, centre to end distance

33 mm

Connection no 1 center to end distance

21 mm

Manufacturer

Voss
